Metallographic Microscope
Description

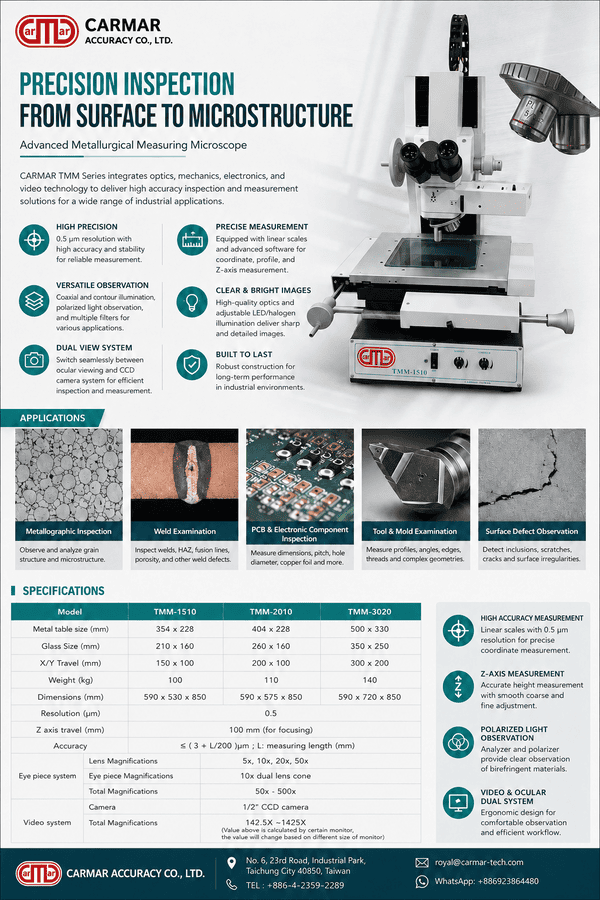

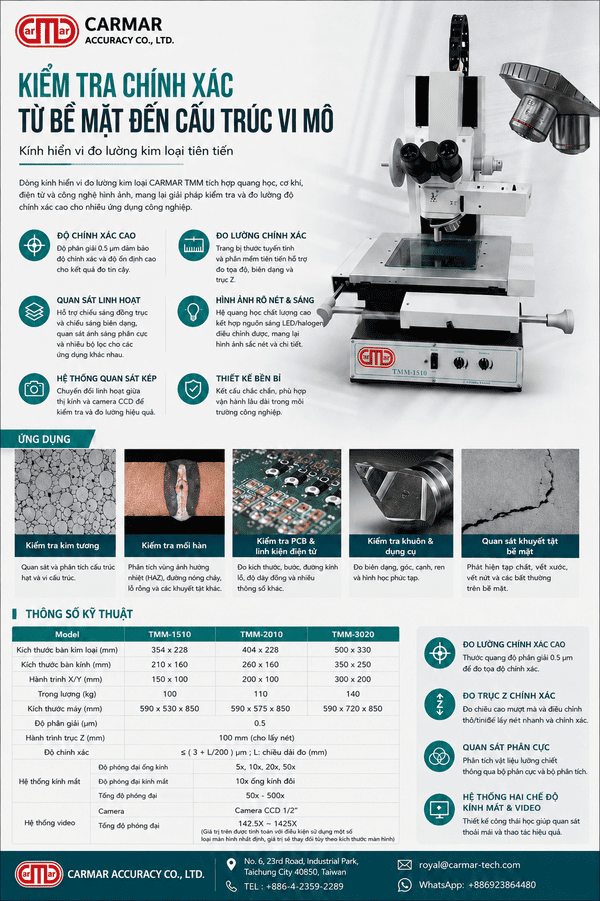

Metalloscope is a accurate with outstanding efficiency measuring system that takes image, eyepiece and nanoscale height into consideration, and integrates optics, machinery, electronics, computing and video. This instrument has two sighting systems: television image and visual optics, which can be used to observe metallographic structure of a metal’s surface. This instrument is mainly applied in 2D measurement, sometimes in 3D aided measurement as well. It is widely used in manufacturing sectors, such as electronic components, precise mold, precise tool, plastic, PCB, coating’s thickness, handset grass, etc. Metalloscope, the video measuring machine combines with microscope will satisfy your needs to observe the surface condition of obejct and execute the dimensions measuring in one unit.Features:
1. Z-axis rough adjustment / fine adjustment rotary knob both available.
2. Coaxial surface light measurement or bottom light measurement available.
3. X, Y, Z axes resolution: 0.5μm.
4. Built-in polarized light measuring module.
5. Can be measured nanoscale height difference of transparent material.
6. White light nanometer measuring module optional.
Specifications
| Model | TMM-1510 | TMM-2010 | TMM-3020 | |
|---|---|---|---|---|
| Metal table size (mm) | 354 x 228 | 404 x 228 | 500 x 330 | |
| Glass Size (mm) | 210 x 160 | 260 x 160 | 350 x 250 | |
| X/Y Travel (mm) | 150 x 100 | 200 x 100 | 300 x 200 | |
| Weight (kg) | 100 | 110 | 140 | |
| Dimensions (mm) | 590 x 530 x 850 | 590 x 575 x 850 | 590 x 720 x 850 | |
| Resolution (μm) | 0.5 | |||
| Z axis travel (mm) | 120 mm (for focusing) | |||
| Accuracy | ≤ ( 3 + L/200 )μm ; L: measuring length (mm) | |||
| Lens magnification error | ≤ 0.08 (with distortions) | |||
| Transmission illumination | Adjustable brightness halogen lamp | |||
| Contour illumination | Adjustable brightness LED | |||
| Measuring Software | CARMAR 2.5D | |||
| Eye piece system | Lens Magnifications | 5x, 10x, 20x, 50x | ||
| Eye piece Magnifications | 10 dual lens cone | |||
| Total Magnifications | 50x - 500x | |||
| Video system |
Camera | 1/2" CCD camera | ||
| Total Magnifications |
142.5X ~1425X
(Value above is calculated by certain monitor, the value will change based on different size of monitor)
|
|||
| Power Supply | AC220V/110V 50/60 Hz | |||
| Rights reserved to change specifications without prior notice | ||||
