Quick Check

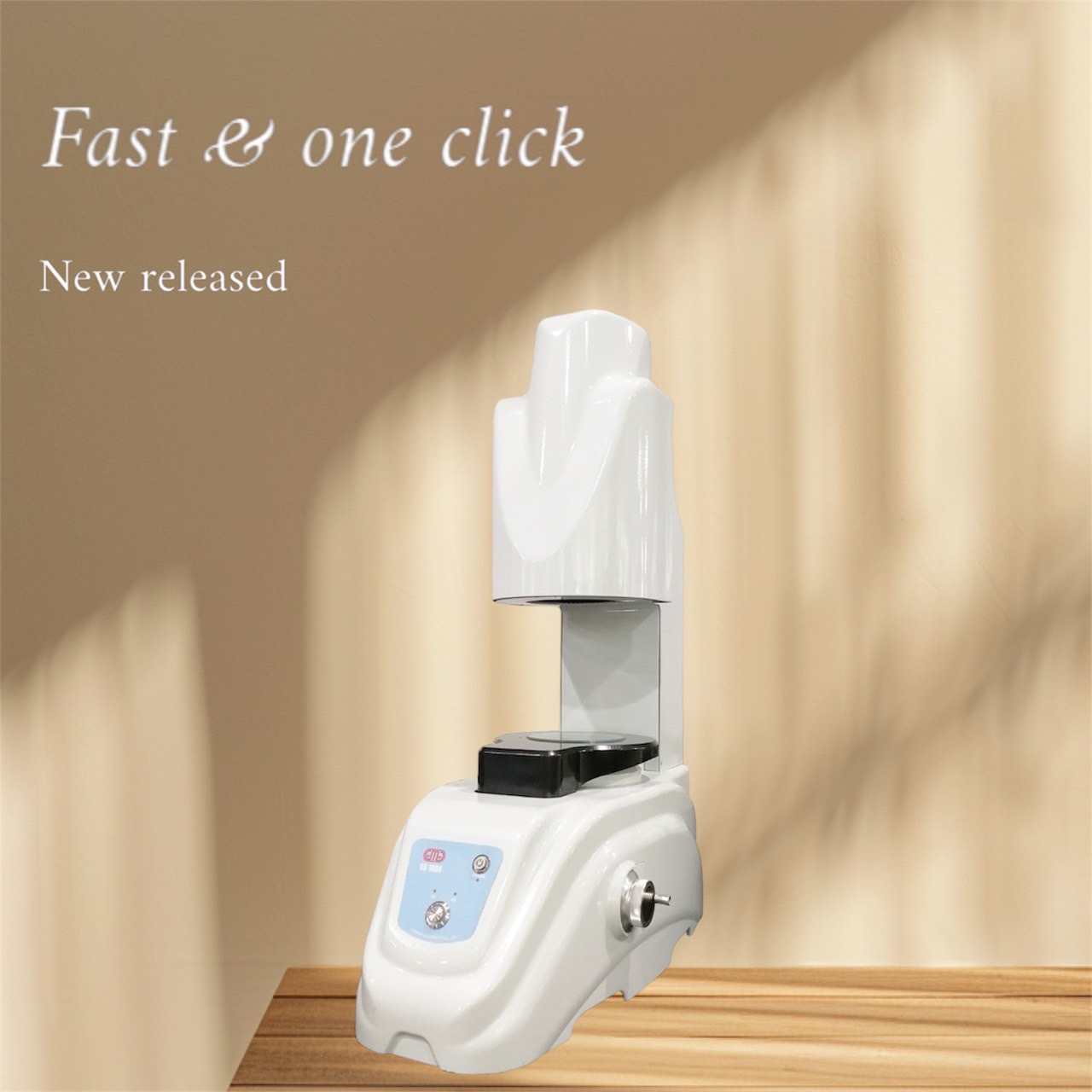

Instant VMM(quick check)

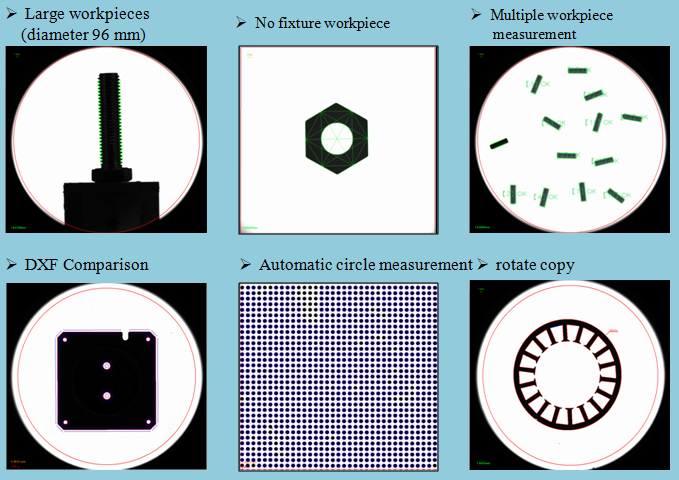

Features: Introducing our advanced imaging system, designed to streamline your measurement process and enhance efficiency. Once you perform the initial measurement, our innovative software allows you to simply place the workpiece onto the machine—no need to align it precisely or press any additional buttons. The system automatically measures the dimensions of the workpiece with remarkable accuracy, even if it's placed at random.; This hands-free functionality reduces setup time and eliminates the need for manual adjustments, making it an ideal solution for manufacturers seeking precision and ease of use. Experience the future of automated measurement with our cutting-edge technology.

Description

When to use

#Incoming material
It is used when you receive the materials. When an abnormality is detected, we can ask to return or exchange the product, so as to avoid the use of inferior products and cause product abnormalities.

#Experiment batch inspection
Products are tested during trial production, and mass production is carried out only when a process that meets product specifications to avoid waste of raw materials.

#Sampling in mass production
In the process of mass production, process parameters need to be adjusted as time progresses, and the results of random inspection can assist in fine-tuning process parameters.

#Pre-shipment inspection
In order to ensure the quality of shipments, it can be equipped with a robotic arm to inspect all products to improve the yield of good products.

#Record measurement file

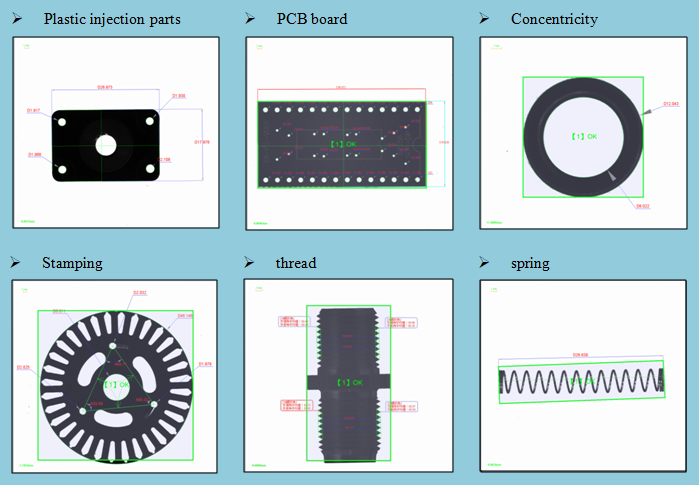

Create measurement files with QC5000 software, and the measurement content includes points, lines, circles, arcs, ellipses, rings, rectangles, groove shapes, distances, angles, pitches, point sets, etc.
#Online Instant Check
The inspection is completed after placement, and the results are reflected immediately and the data is combined to calculate the NG rate, so that the process parameters can be adjusted online to improve the product yield.
#Statistical report export
The data after measurement is automatically output as report. There are three types of report formats, including default output, custom report and data import to the report specified by the customer, which can reduce the time for personnel to repeatedly input data.
#Artificial Intelligence
When the AI mode is turned on, as long as the customer changes the object to be tested, the software will automatically perform the measurement. If the customer needs a full inspection, it can be used with a robotic arm for measurement to reduce labor costs. (without a click)
#DXF comparison
Import DXF files, and set the workpiece size tolerance zone, real-time image comparison to see if it exceeds the tolerance zone, and even output DXF with software measurement function 。
#SPC statistics
According to the measurement items, it can automatically calculate and display OK number, NG number, maximum value, minimum value, average value, σ, 3σ, 6σ, Cp, Cpk and other main statistical values. The management of batch engineering capacity is also quite easy.
#Lifting light source
1.Applied to blind holes or surface hole topography
2.Light source lifting height can be selected
3.Surface ring light with 4 angles, suitable for many situations
4.Automatically record the height of the light source, the product is placed and measured
#DXF comparison
1.Applied to cut surface or contour level check
2.set the outline of DXF
3.import customer's own DXF drawing file
4.Quickly check if object exceeds bandwidth
#One-click measure circle
1.Applied to processing drilling and accelerating file building
2.After clicking the function, the software quickly measure all circles, and also measure without creating a file.
3.Quick inspection of urgent and temporary items
#Mirror measurement
1.Applied to flat processing
2.Solve the problem of which side should be facing up on object tested.
3.Cooperate with random placement and AI function to achieve measurement when changing parts

Add Inquiry (0)

Specifications

Model		VS-100A	VS-100C
Lifting light source		No	Yes
working distance(mm)		120
Working load (kg)		3
Working table lifting stroke(mm)		50
focus(z)		Auto focus
Drive control system		Independent Motor Control
S Y S T E M	Telecentric lens magnification	0.088 X	0.176 X
	Measuring Field of View(mm)	96*96	50
	Repeatability (mm)	1	1
	Movement accuracy(mm)	8	5
	depth of field (mm)	± 8	± 3.6
Image Sensor		20 million USB3.0 industrial camera
Software		QC5000 Professional software for data processing
Lighting System		Adopt LED ring surface light, bottom light (automatic best light source)
Dimensions(mm)(L x W x H)		568283769 mm
Weight (kg)		About 40 kg
Rights reserved to change specifications without prior notice
