Horizontal Instant VMM
- Features

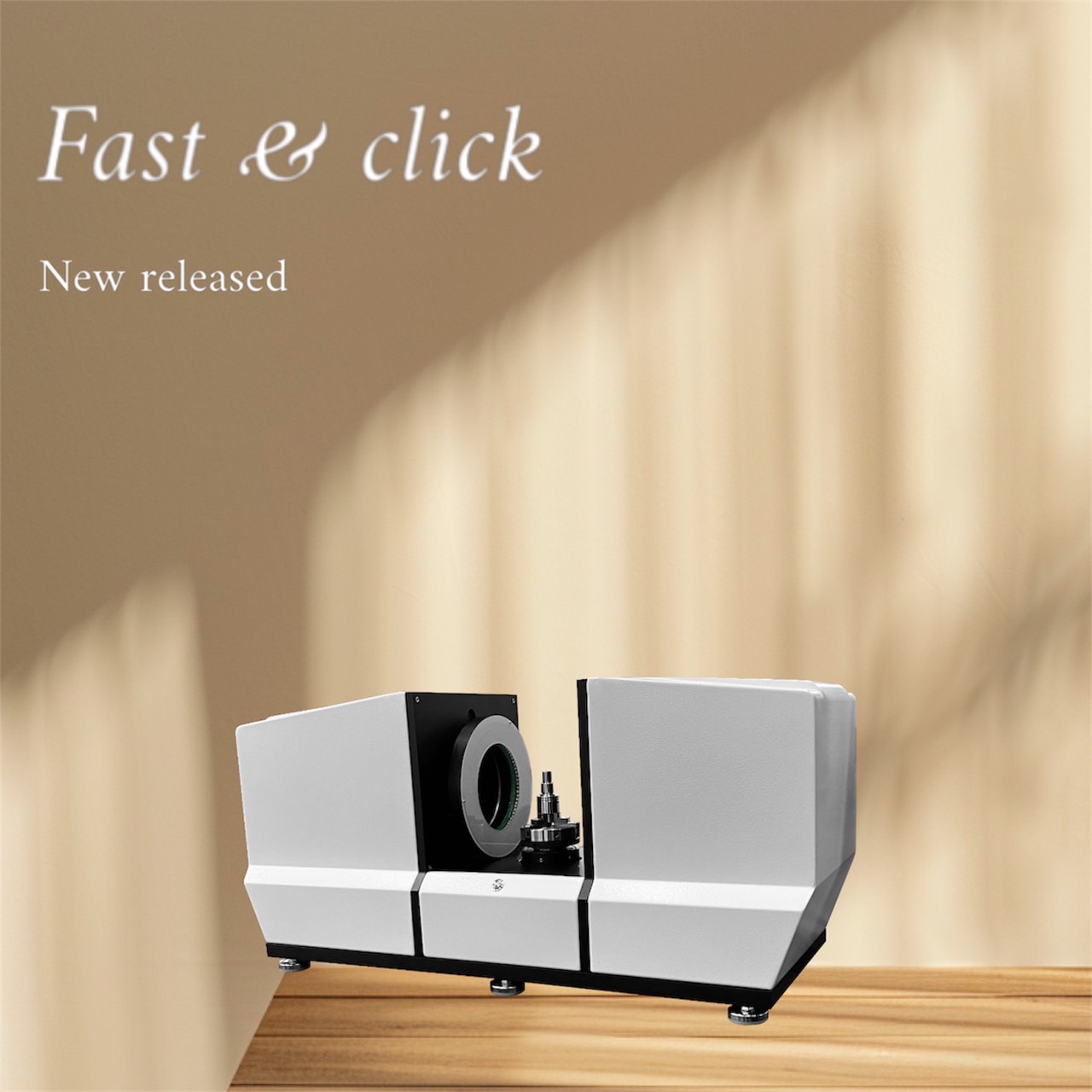

- HORIZONTAL INSTANT MEASURING MACHINE
- Revolutionize Your Measurement Process with Our Cutting-Edge Horizontal Instant Measurement Device!
- Experience unparalleled innovation in the industry with our state-of-the-art imaging system. Designed to enhance precision and efficiency, this device offers:
- #360-Degree Rotating Stage: Seamlessly inspect every angle of your components without the need for repositioning.
- #Comprehensive Measurement with a Single Program: Enjoy full coverage measurement with no blind spots, ensuring every dimension is accurately captured.
- #Specialized for Tools and Lathe Components: Tailored specifically to meet the demands of tool and lathe parts, optimizing performance for your needs.
- # Instantaneous Measurement of Hundreds of Dimensions: Achieve rapid, high-precision measurements for numerous dimensions in an instant.
- #Integrated SPC System: Benefit from advanced Statistical Process Control (SPC) to monitor and improve quality control effortlessly.
- Elevate your manufacturing process with this advanced imaging solution, designed to deliver exceptional accuracy and efficiency. Discover the future of measurement technology today!
Description
Place = Measuring
Recording：Create measurement files with QC5000 software, which can measure points, lines, circles, arcs, ellipses, rings, rectangles, slots, distances, angles, pitches, point sets, etc.
Online Instant Check：The inspection is completed after placement, and the results are reflected immediately and the data is combined to calculate the NG rate, so that the process parameters can be adjusted online to improve the product yield.
Statistical report export：The data after measurement is automatically brought into the report. There are three types of report formats, including default output, custom report and data import to the report specified by the customer, which can reduce the time for personnel to repeatedly input data.
AI automatic judgment: When the AI mode is turned on, as long as the customer changes the object to be tested, the software will automatically perform the measurement. If the customer needs a full inspection, it can be used with a robotic arm for measurement to reduce labor costs.
DXF comparison: It can import customer DXF files, and set the workpiece size tolerance zone, real-time image comparison to see if it exceeds the tolerance zone, and even output DXF with the software measurement function.
SPC statistics: According to the measurement items, it can automatically calculate and display OK number, NG number, maximum value, minimum value, average value, σ, 3σ, 6σ, Cp, Cpk and other main statistical values. The management of batch engineering capacity is also quite easy.
Maximum size measurement
# Superimpose the image of the sample rotated 360° into a picture
# Measure the size of the picture
# It can avoid the non-maximum size caused by the measurement angle
Multi-angle measurement averaging(with software computing function)
# Avoid extreme values caused by measurement angle differences
# Sample placement does not require a specific angle
# Quick inspection of tools, lathe parts
Specifications
| Model | VH-100S | ||
|---|---|---|---|
| Lifting light source | Yes | ||
| working distance(mm) | 120 | ||
| Working load (kg) | 3 | ||
| Movement stroke(mm) | 20 | ||
| focus(z) | Auto focus | ||
| Drive control system | Servo motor | ||
| Table Angle | 360° | ||
|
S Y
S T E M |
Telecentric lens magnification | 0.088 X | |
| Measuring Field of View(mm) | 85*65 | ||
| Repeatability (mm) | 1 | ||
| Movement accuracy(mm) | 5 | ||
| depth of field (mm) | ± 8 | ||
| Image Sensor | 20 million USB3.0 industrial camera | ||
| Software | QC5000 Professional software for data processing | ||
| Lighting System | Contour | ||
| Dimensions(mm)(L x W x H) | 800*260*370 mm | ||
| Weight (kg) | About 40 kg | ||
| Rights reserved to change specifications without prior notice | |||
