Video Measuring Machine
Video Digital Tool-maker Microscope
Description

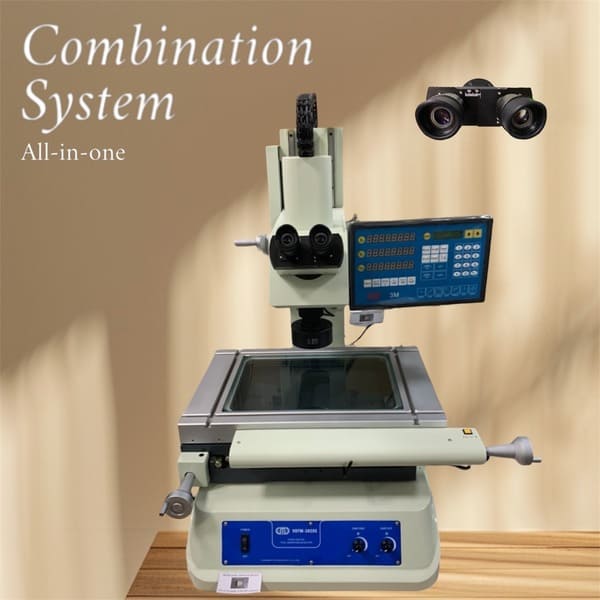

VDTM series video digital toolmaker microscope is a photoelectric measuring system of high precision and efficiency. It is mainly applied in 2D measurement, sometimes in 3D as well with eyepiece gauge. The measurements of surface roughness, height, depth, steps, etc. are made simply by relative measuring method. VDTM measuring microscope is highly appreciated by manufacturers for its accurate measurement and inspection of objects, such as PCB, precision parts, ICs, magnetic heads, electronic components, etc. VDTM, the video measuring machine combines with microscope will satisfy your needs to observe the surface condition of obejct and execute the dimensions measuring in one unit.Features:
1. VDTM series video toolmaker microscopes have many functions such as data gathering/displaying, image displaying/magnifying, data input/output.
2. Equipped with professional inspection color CCD camera and image measuring software greatly enhances image measurement performance, it make the operation of edge detection faster and more accurate.
3. Eyepiece system can perform good optical view and the illumination is much clearer then VMM.
4. VDTM can also connect to PC by RS232 interface on digital readout device. It can input and output the measured values directly.

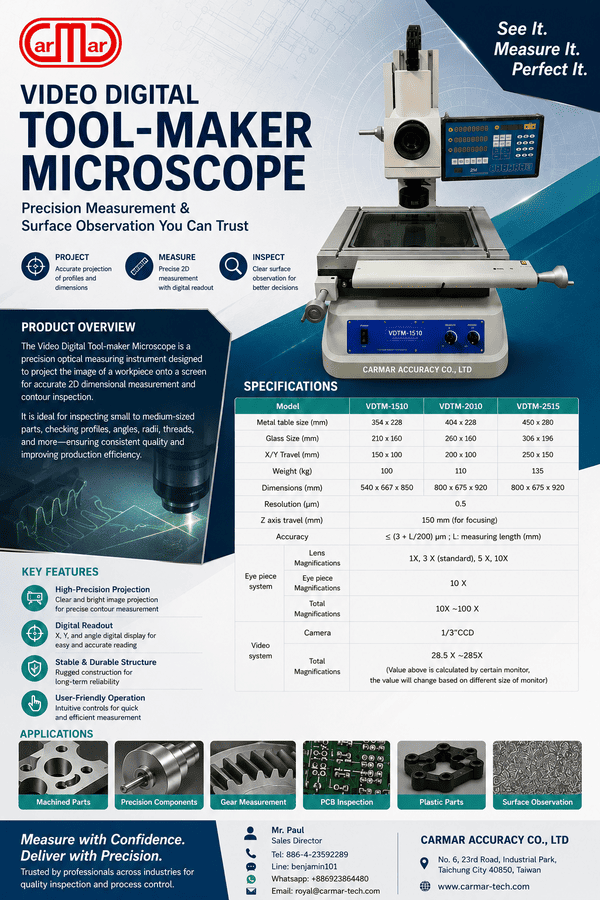

Specifications
| Model | VDTM-1510 | VDTM-2010 | VDTM-2515 | |
|---|---|---|---|---|
| For larger measurement ranges, please get in touch with our sales team | ||||
| Metal table size (mm) | 354 x 228 | 404 x 228 | 450×280 | |
| Glass Size (mm) | 210 x 160 | 260 x 160 | 306×196 | |
| X/Y Travel (mm) | 150 x 100 | 200 x 100 | 250 x 150 | |
| Weight (kg) | 100 | 110 | 135 | |
| Dimensions (mm) | 540 x 667 x 850 | 800 x 675 x 920 | 800×675×920 | |
| Resolution (μm) | 0.5 | |||
| Z axis travel (mm) | 150 mm (for focusing) | |||
| Accuracy | ≤ ( 3 + L/200 )μm ; L: measuring length (mm) | |||
| transmission illumination | Halogen tungsten lamp (24V, 20W) | |||
| Surface illumination | 12V LED ring-shaped lamp (including laser indicator) | |||
| Measuring Software | CARMAR 2.5D | |||
| Eye piece system | Lens Magnifications | 1X, 3 X (standard), 5 X, 10X | ||
| Eye piece Magnifications | 10 X | |||
| Total Magnifications | 10X ~100 X | |||
| Video system |
Camera | 1/3”CCD | ||
| Total Magnifications |
28.5 X ~285X
(Value above is calculated by certain monitor, the value will change based on different size of monitor)
|
|||
| Power Supply | AC220V/110V 50/60 Hz | |||
| Rights reserved to change specifications without prior notice | ||||
