Profile Projector
Digital Profile Projector-Multi-lens
- Features
- Instant Lens Switching: Easily switch lenses, enhancing operational convenience.
- Versatile Measurement: Accommodates a wide range of sizes and complexities.
- Stable and Accurate: Fixed lens design ensures consistent measurement results.
- Increased Efficiency: Streamline workflows, significantly reduce operation time.
- Space-Saving: Minimize lens storage needs, keeping the workspace organized.
Description

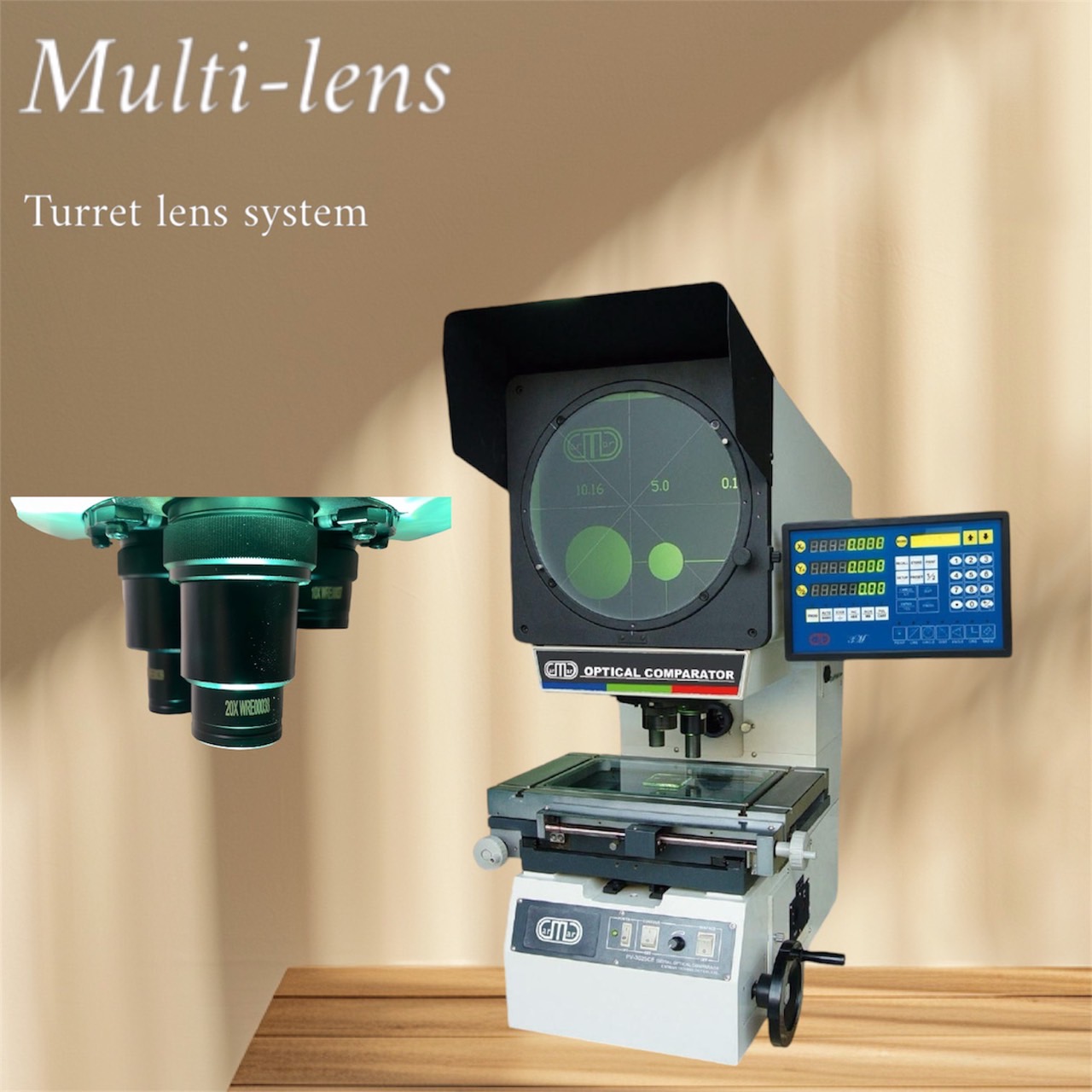

CARMAR PV Series Profile Projector
Discover the ultimate precision and efficiency in optical measuring with the CARMAR PV series profile projector, equipped with a multi-lens turret for versatile measurement capabilities.
Key Features
- Excellent Optical Measuring System: Projects precisely magnified images for accurate measurement.
- Magnification Accuracy: 0.08% for contours, 0.12% for surfaces.
- Advanced Data Processing: Equipped with 3M DRO(DC3000) system and foot-switch for efficient measuring.
- Erect Image Measuring: Accommodates various measurement requirements.
Multi-Lens Turret: Streamline Your Measurement Process and Boost Efficiency
The multi-lens turret is an invaluable feature designed to enhance flexibility and efficiency in measurement systems. It allows users to swiftly switch between different lenses, significantly improving workflow and measurement precision.
Key Advantages of a Multi-Lens Turret:
- Instant Lens Switching: Quickly select the most suitable lens for your measurement needs, saving time by eliminating the recalibration process required when changing lenses.
- Versatile Measurement Options: Handles various sizes and complexities, making it ideal for diverse measurement tasks and enhancing overall efficiency.
- Consistent Measurement Accuracy: Fixed lenses on the turret prevent displacement, ensuring accurate readings every time.
- Increased Operational Efficiency: Swift lens switching reduces operation time, perfect for high-frequency measurement environments.
- Space Saving: Integrating multiple lenses into one turret reduces the need for separate lens storage, keeping your workspace organized and clutter-free.
Description
The CARMAR PV series profile projector (Optical Comparator) is a reliable and affordable measuring system known for its high precision and efficiency. It is an excellent solution for high-quality optical profile measuring, suitable for various shapes and complex profiles such as press components, gears, cams, treads, tools, dies, turned components, and automats. The profile projector is the most effective device for measuring most two-dimensional parameters like linear dimensions and angles.
Additional Benefits
- Convenient Operation: While it may not offer the clarity of a video measuring machine, its ease of use makes it perfect for various environments.
- Efficient Measurement: Accurate measurements without the need for complex calibration and adjustments.
- Versatile Applications: Suitable for component inspection in industries such as manufacturing, automotive, and aerospace.
- Easy Maintenance: Sturdy design, simple maintenance, and long service life.
For more information, you can click here to check our additional resources: VIDEOS.
Specifications
| Model | PV3015CE | PV3020CE | PV3025CE | ||
|---|---|---|---|---|---|
| Stage Size (mm) | 354 x 228 | 404 x 228 | 450 x 280 | ||
| Glass Size (mm) | 210 x 160 | 260 x 160 | 306 x 196 | ||
| X/Y Travel (mm) | 150 x 100 | 200 x 100 | 250 x 150 | ||
| Z Travel (mm) | 100 (for focusing) | ||||
| Accuracy (μm) | E1XY=(2.5+L/100) μm ; L: measuring length (mm) | ||||
| Resolution (μm) | 0.5 | ||||
| Measuring Software | CARMAR 2D (Optional) | ||||
| Projector Screen |
Size (mm) | 12" (⌀ 312), usual range > Ф300（etched with a crosshair） | |||
| Rotation range | 0~360° | ||||
| Angel resolution | 1’ or 0.01° | ||||
| Objective lens |
Magnification | 10X(standard) | 20X(standard) | 50X(standard) | 100X(standard) |
| Object view (mm) | ⌀30 | ⌀15 | Ø6 | Ø3 | |
| Working distance (mm) | 77.7 | 44.3 | 38.4 | 25.3 | |
| Max. work-piece height (mm) | 90 | 90 | 90 | 90 | |
| Data process system |
3M multi-function data processing system : Coordinate skew, mm/inch conversion, ABS/INC conversion, Zero setting, % calculation, 0* 90* 270" 360 conversion, linear compensation RS-232 data output |
||||
| Illumination |
Transmission and reflection light source : 24V/150W-halogen lamp |
||||
| Power |
110V/220V(AC)ㆍ50/60Hzㆍ400W total power |
||||
| Light souce cooling |
Forced air cooling |
||||
| Dimensions (mm) | 780 x 810 x 1120 | 780 x 810 x 1120 | 780 x 810 x 1120 | ||
| Weight (kgs) |
160 |
||||
| Optional | The accessories include 2D software, a rotary table, a swivel center support, and an edge detector. For additional accessories, please contact the sales manager. | ||||
