Profile Projector

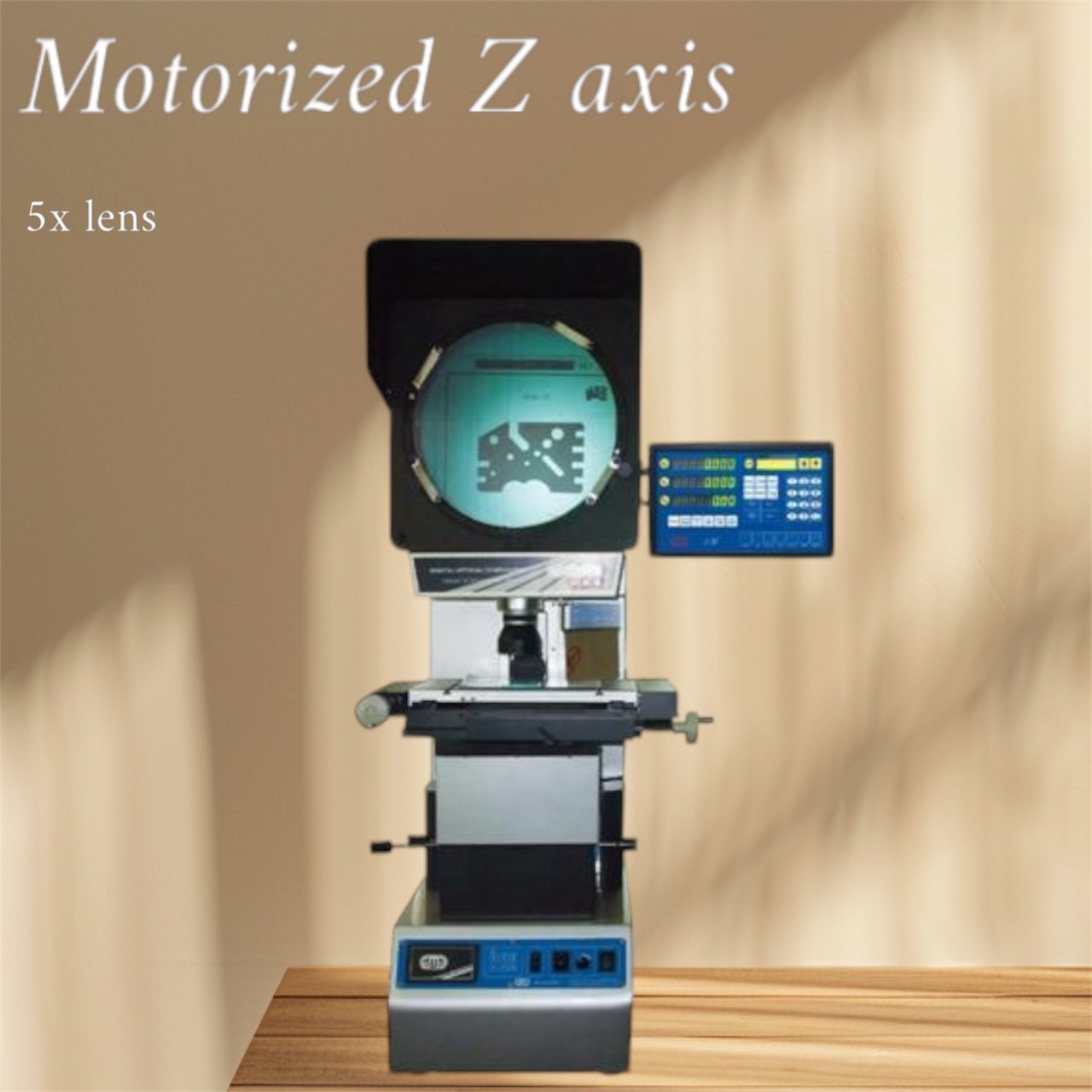

Motorized Vertical Digital Profile Projector, Optical Comparator
- Features
- 1.Advanced Z-Axis: Stepper motor-driven Z-axis with electric focusing for precise and efficient measurement of complex shapes.
- 2.Versatile Lenses: Range of lens magnifications, including a 5X lens for a larger, clearer view.
- 3.High Precision Optics: Projects magnified images with 0.08% accuracy for contours and 0.12% for surfaces.
- 4.Smart Data Processing: Integrated 3M DRO (DC3000) system and footswitch for efficient, real-time data handling.
- 5.Flexible Measurement: Adapts to various measurement needs, including linear dimensions, angles, and complex profiles.
Description
**Digital PV-3000DE Series Profile Projector (Optical Comparator)****Unleash Precision with Cutting-Edge Technology**
Discover the exceptional performance of the PV-3000DE Series Profile Projector and experience unprecedented accuracy and efficiency in your measurements. This high-end optical comparator breaks the boundaries of traditional measurement, bringing revolutionary upgrades to the precision measurement field.
**Key Features:**
1. **Advanced Stepper Motor-Driven Z-Axis**: Equipped with a stepper motor-driven Z-axis, the PV-3000DE provides precise electric focusing and enhanced counting capabilities. This allows for effortless measurement of complex shapes and components like ladders, significantly boosting measurement efficiency and accuracy.
2. **Versatile Lens Options**: The PV-3000DE series offers a complete range of lens magnifications, allowing you to select the optimal lens for different objects. The 5X lens provides a larger field of view, ensuring clear and detailed measurements every time.
3. **Precision Optical System**: Utilizing state-of-the-art optical technology, the PV-3000DE projects magnified images with high accuracy. Magnification accuracy reaches 0.08% for contours and 0.12% for surfaces, meeting even the most stringent measurement requirements.
4. **Intelligent Data Processing**: The projector features an integrated 3M DRO (DC3000) data processing system and a convenient footswitch for smooth operation. Real-time data reading and processing streamline your measurement workflow, enhancing efficiency.
5. **Flexible Image Measurement**: With erect image measurement capabilities, the PV-3000DE adapts to various measurement requirements. Whether measuring linear dimensions, angles, or complex profiles, this projector delivers precise results.
**Why Choose PV-3000DE?**
The PV series profile projectors are not only a reliable and cost-effective high-precision measurement system but also an ideal choice for measuring a wide range of shapes and details. From die-cast components and gears to cams, threads, tools, dies, and automated parts, the PV-3000DE excels in measuring most 2D parameters with accuracy and efficiency.
**Quality Assurance from Carmar Technology**
All critical components of the PV-3000DE, including linear scales, digital readouts, and optical lenses, are manufactured by industry-leading Carmar Technology, ensuring exceptional quality and reliability.
Choose the PV-3000DE Series Profile Projector to master your measurement needs with unmatched precision and efficiency!
Specifications
| Model | PV3015DE | PV3020DE | |||
|---|---|---|---|---|---|
| Stage Size (mm) | 354 x 228 | 404 × 228 | |||
| Glass Size (mm) | 210 x 160 | 260 × 160 | |||
| X/Y Travel (mm) | 150 x 100 | 200 x 100 | |||
| Z Travel (mm) | 100 (for focusing) | ||||
| Accuracy (μm) | X, Y-axis: (2.5+L/100). Z-axis: 3.5+L/25 (L is the length of the measured object. Unit: mm) |
||||
| Resolution (μm) | 0.5 | ||||
| Z-axis motion speed (mm/s) | 5, 1, 0.01 (3 modes available) | ||||
| Measuring Software | CARMAR 2D (Optional) | ||||
| Projector Screen |
Size (mm) | 12" (⌀ 312), usual range > Ф300（etched with a crosshair） | |||
| Rotation range | 0~360° | ||||
| Angel resolution | 1’ or 0.01° | ||||
| Objective lens |
Magnification | 10X(standard) | 20X(standard) | 50X(standard) | 100X(standard) |
| Object view (mm) | ⌀30 | ⌀15 | Ø6 | Ø3 | |
| Working distance (mm) | 77.7 | 44.3 | 38.4 | 25.3 | |
| Max. work-piece height (mm) | 90 | 90 | 90 | 90 | |
| Data process system |
3M multi-function data processing system : Coordinate skew, mm/inch conversion, ABS/INC conversion, Zero setting, % calculation, 0* 90* 270" 360 conversion, linear compensation RS-232 data output |
||||
| Illumination |
Transmission and reflection light source : 24V/150W-halogen lamp |
||||
| Power |
110V/220V(AC)ㆍ50/60Hzㆍ400W total power |
||||
| Light souce cooling |
Forced air cooling |
||||
| Dimensions (mm) | 670×570×1250 | ||||
| Weight (kgs) |
150 |
||||
| Optional | The accessories include 2D software, a rotary table, a swivel center support, and an edge detector. For additional accessories, please contact the sales manager. | ||||
| All rights reserved to alter the specifications without prior notice. | |||||
