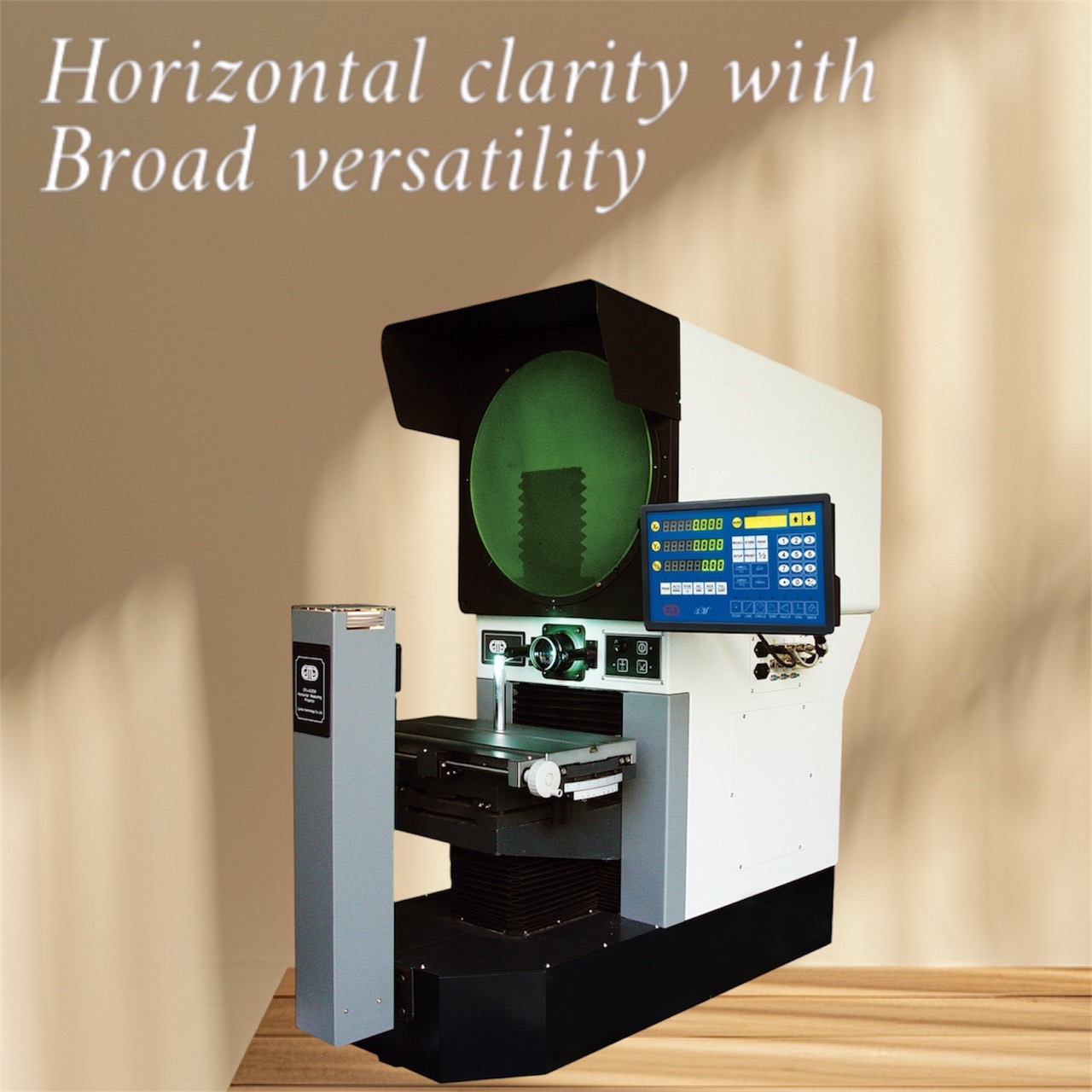

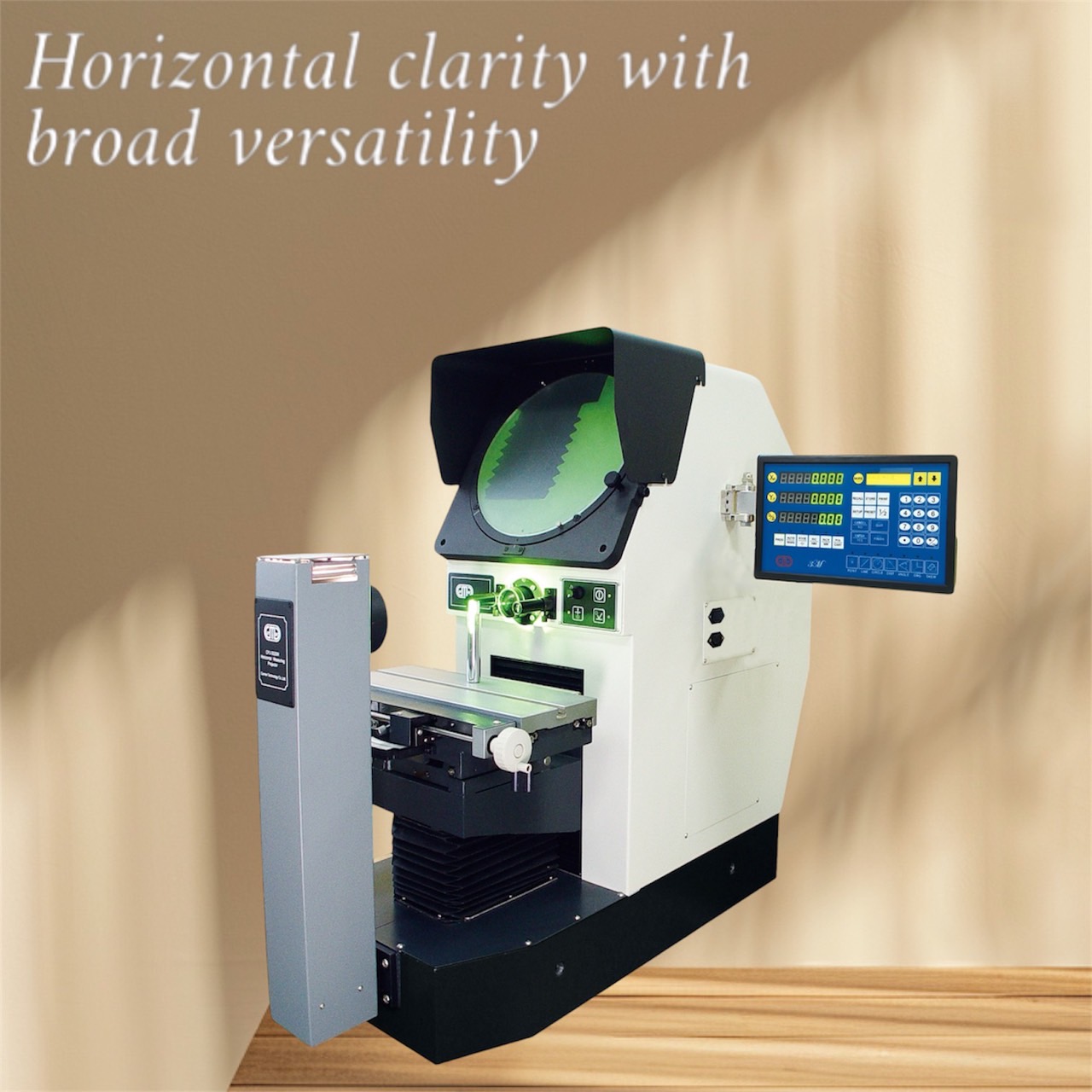

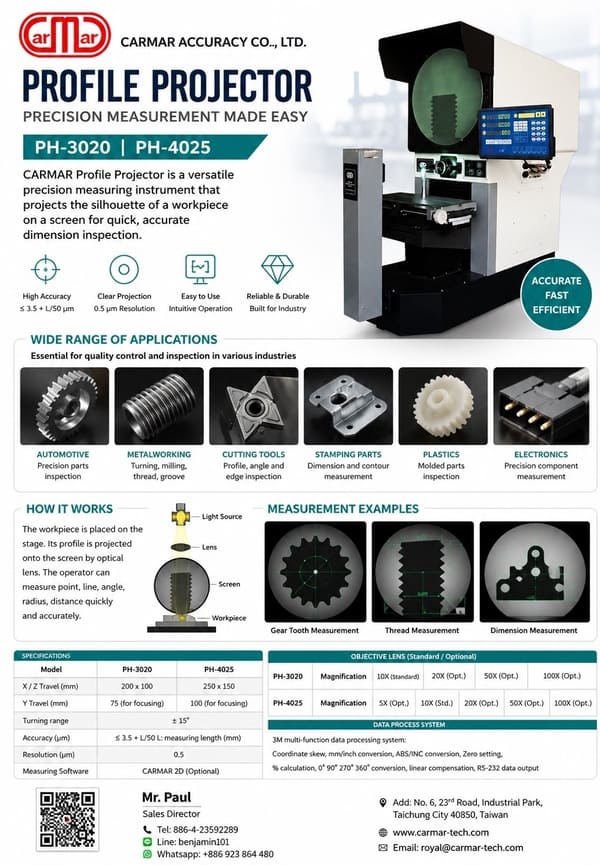

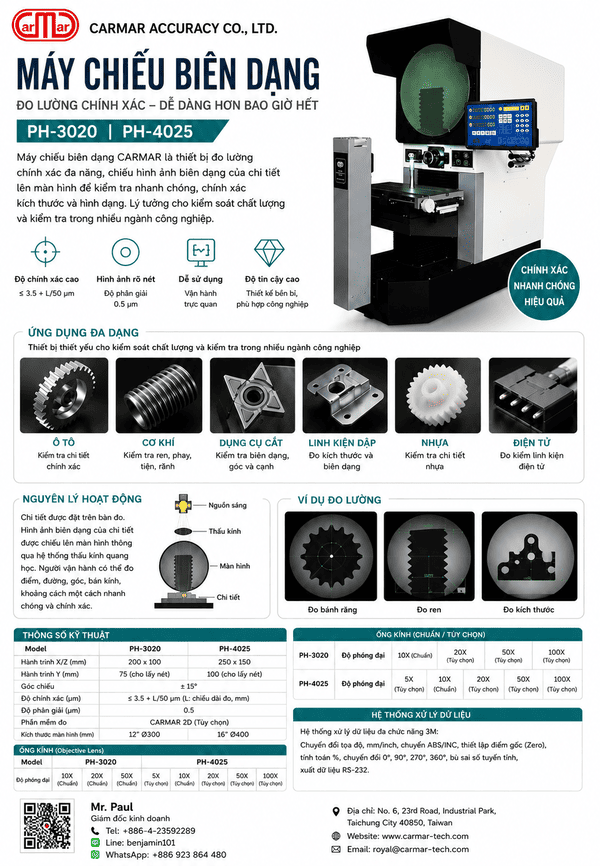

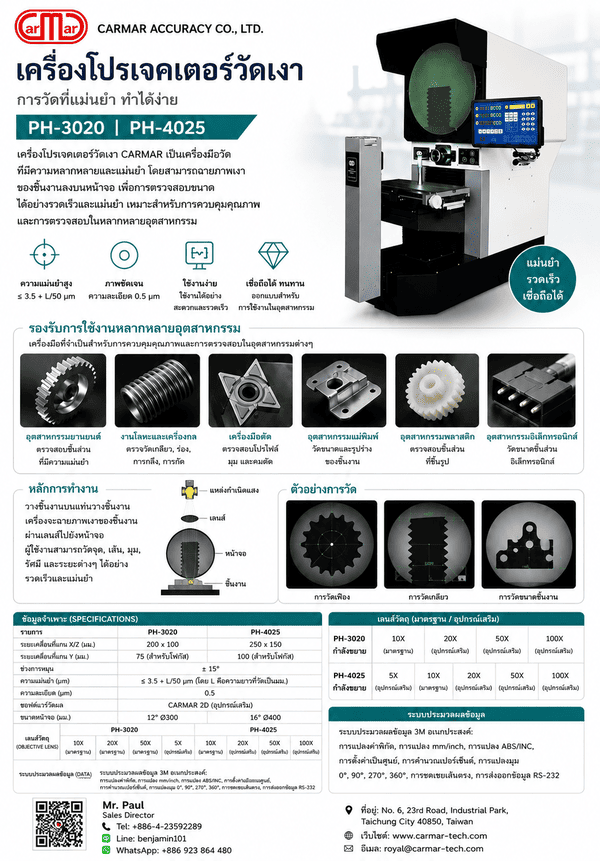

- Digital Profile Projector-Horizontal
Profile Projector
Digital Profile Projector-Horizontal
- Features
- Versatile Helix Angle Adjustment: Enjoy the flexibility of a helix angle stage adjustable up to ±15°, ensuring perfect alignment for all your measurement needs.
- Heavy-Duty, Industrial-Grade Construction: Built with robust metal construction to endure the toughest conditions, promising reliability and durability.
- Extended Range & Superior Accuracy: Achieve precise results with an expanded measurement range, designed to meet the highest standards of accuracy.
- Powerful DRO System: Equipped with a cutting-edge Digital Readout system for swift geometric computations, featuring an intuitive and easy-to-use interface for effortless operation.
Description
Profile Projector — Your Ultimate Measurement Partner
Discover an unparalleled measurement experience that blends precision with efficiency seamlessly. The Profile Projector is your go-to solution for high-accuracy dimensional measurements.
Key Features of Our Profile Projector
- Versatile Helix Angle Adjustment: Enjoy the flexibility of a helix angle stage adjustable up to ±15°, ensuring perfect alignment for all your measurement needs.
- Heavy-Duty, Industrial-Grade Construction: Built with robust metal construction to endure the toughest conditions, promising reliability and durability.
- Extended Range & Superior Accuracy: Achieve precise results with an expanded measurement range, designed to meet the highest standards of accuracy.
- Powerful DRO System: Equipped with a cutting-edge Digital Readout system for swift geometric computations, featuring an intuitive and easy-to-use interface for effortless operation.
Why Choose Our Profile Projector?
Our Profile Projector is a reliable and cost-effective high-precision measuring system that meets your most demanding quality requirements. Here’s why you should consider it:
- Exceptional Optical Projection System: Project highly magnified and precise images, ensuring every detail is crystal clear.
- Outstanding Magnification Accuracy: Contour magnification accuracy of 0.08% and surface magnification accuracy of 0.12%.
- Advanced Data Processing: Comes with the 3M DRO data processing system and a footswitch for seamless measurement operations.
- Versatile Image Measurement: Provides erect image measurement to cater to a variety of requirements.
Ideal Applications
This profile projector is perfect for measuring complex profiles such as:
- Press components
- Gears
- Cams
- Threads
- Tools
- Dies
- Turned parts
- Automation components
Our projector is the most effective device for measuring 2D parameters like linear dimensions and angles.
Elevate Your Measurement Standards
Choose our Profile Projector to elevate your measurement standards, boost your efficiency, and ensure superior product quality.
For more information, you can click here to check our additional resources: VIDEOS.
Specifications
| Model | PH-3020 | PH-4025 | ||||
|---|---|---|---|---|---|---|
| X/Z Travel (mm) | 200 x 100 | 250 x 150 | ||||
| Y Travel (mm) | 75 (for focusing) | 100 (for focusing) | ||||
| Turning range | ± 15° | |||||
| Accuracy (μm) | 4.0 + L/25 L: measuring length (mm) | |||||
| Resolution (μm) | 0.5 | |||||
| Measuring Software | CARMAR 2D (Optional) | |||||
| Projector Screen |
Size (mm) | 12" Ф300 | 16”, Ø400 | |||
| Rotation range | 0~360° | |||||
| Angel resolution | 1’ or 0.01° | |||||
| Objective lens | Model | PH-3020 | ||||
| Magnification | 10X(standard) | 20X(standard) | 50X(standard) | 100X(standard) | ||
| Object view (mm) | ⌀30 | ⌀15 | Ø6 | Ø3 | ||
| Working distance (mm) | 77.7 | 44.3 | 38.4 | 25.3 | ||
| Model | PH-4025 | |||||
| Magnification | 5X(Opt.) | 10X(Std.) | 20X(Opt.) | 50X(Opt.) | 100X(Opt.) | |
| Object view (mm) | Ø80 | Ø40 | Ø20 | Ø8 | Ø4 | |
| Working distance (mm) | 93.7 | 103.9 | 95.1 | 65.7 | 35 | |
| Data process system |
3M multi-function data processing system : Coordinate skew, mm/inch conversion, ABS/INC conversion, Zero setting, % calculation, 0* 90* 270" 360 conversion, linear compensation RS-232 data output |
|||||
| Illumination |
Transmission and reflection light source : 24V/150W-halogen lamp |
|||||
| Power |
110V/220V(AC)ㆍ50/60Hzㆍ400W total power |
|||||
| Light souce cooling |
Forced air cooling |
|||||
| Dimensions (mm) | 1090 × 830 × 1010 | 1215 × 646 × 1210 | ||||
| Weight (kgs) |
160 |
240 | ||||
| Optional | The accessories include 2D software, a rotary table, a swivel center support, and an edge detector. For additional accessories, please contact the sales manager. | |||||
| All rights reserved to alter the specifications without prior notice. | ||||||
