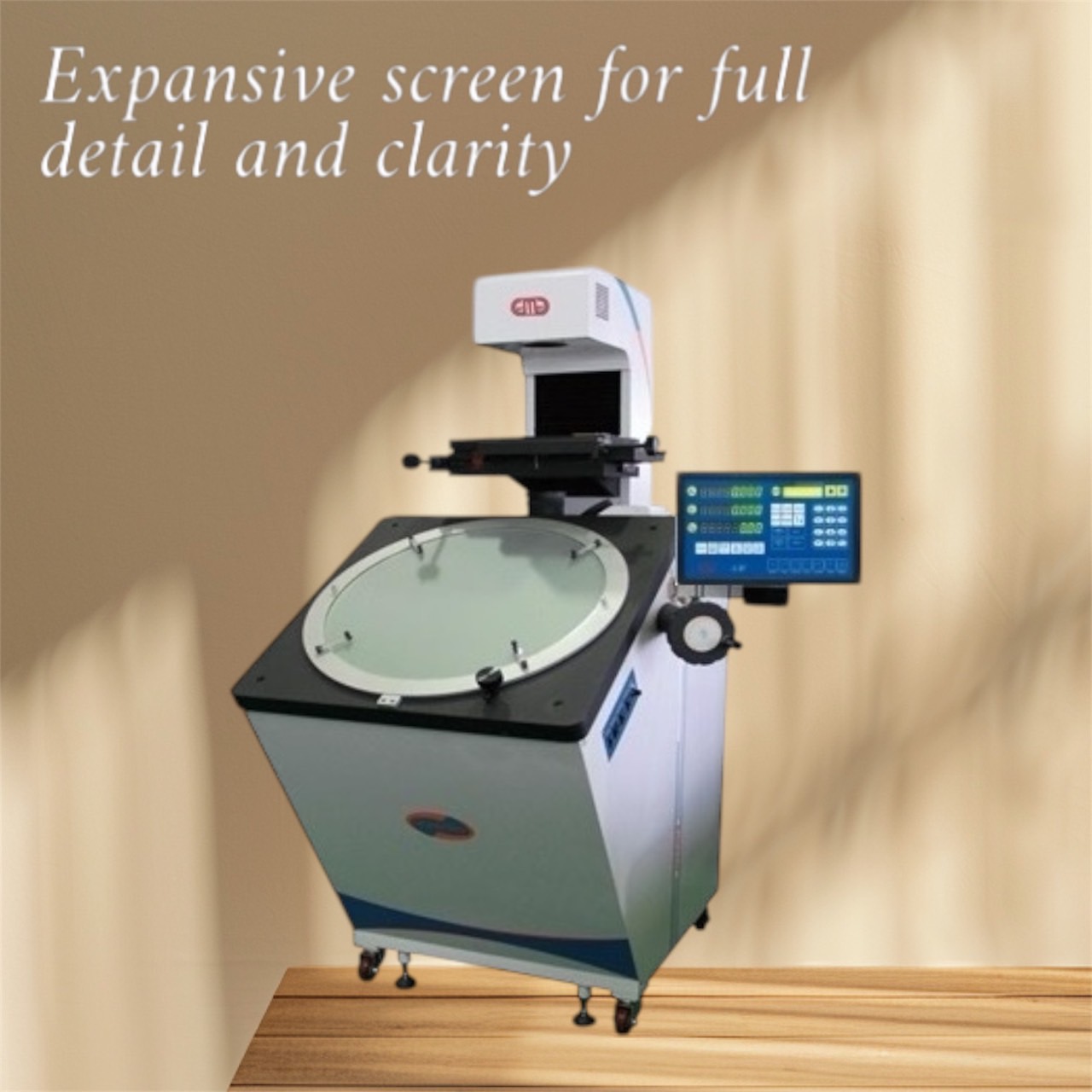

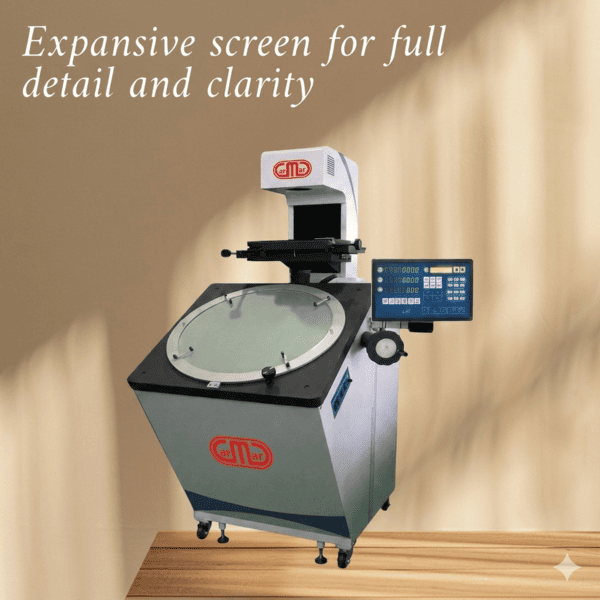

Profile Projector
Ground type Digital Profile Projector, Optical Comparator
- Features
- Stunning Visual Clarity: Our advanced optical system projects a meticulously magnified image, ensuring you see every detail with crystal-clear precision.
- Unmatched Accuracy: Achieve contour magnification accuracy of just 0.08% and surface accuracy of 0.12%—a testament to our commitment to superior performance.
- Seamless Data Handling: Equipped with the DC-3000 data processing system and a user-friendly foot-switch, our projectors streamline your measuring tasks for effortless operation.
- Versatile Image Display: Customize your measurements with our erect image feature, catering to various measurement needs and enhancing your operational flexibility.
Description
Why Choose Our Profile Projectors?
Our profile projectors offer a reliable, affordable, and high-precision solution tailored for your most demanding measurement requirements. Perfect for professionals who need to measure linear dimensions, angles, and other critical 2D parameters with unparalleled accuracy.
Step into a new era of precision measurement and experience the excellence of our Profile Projectors today.
Specifications

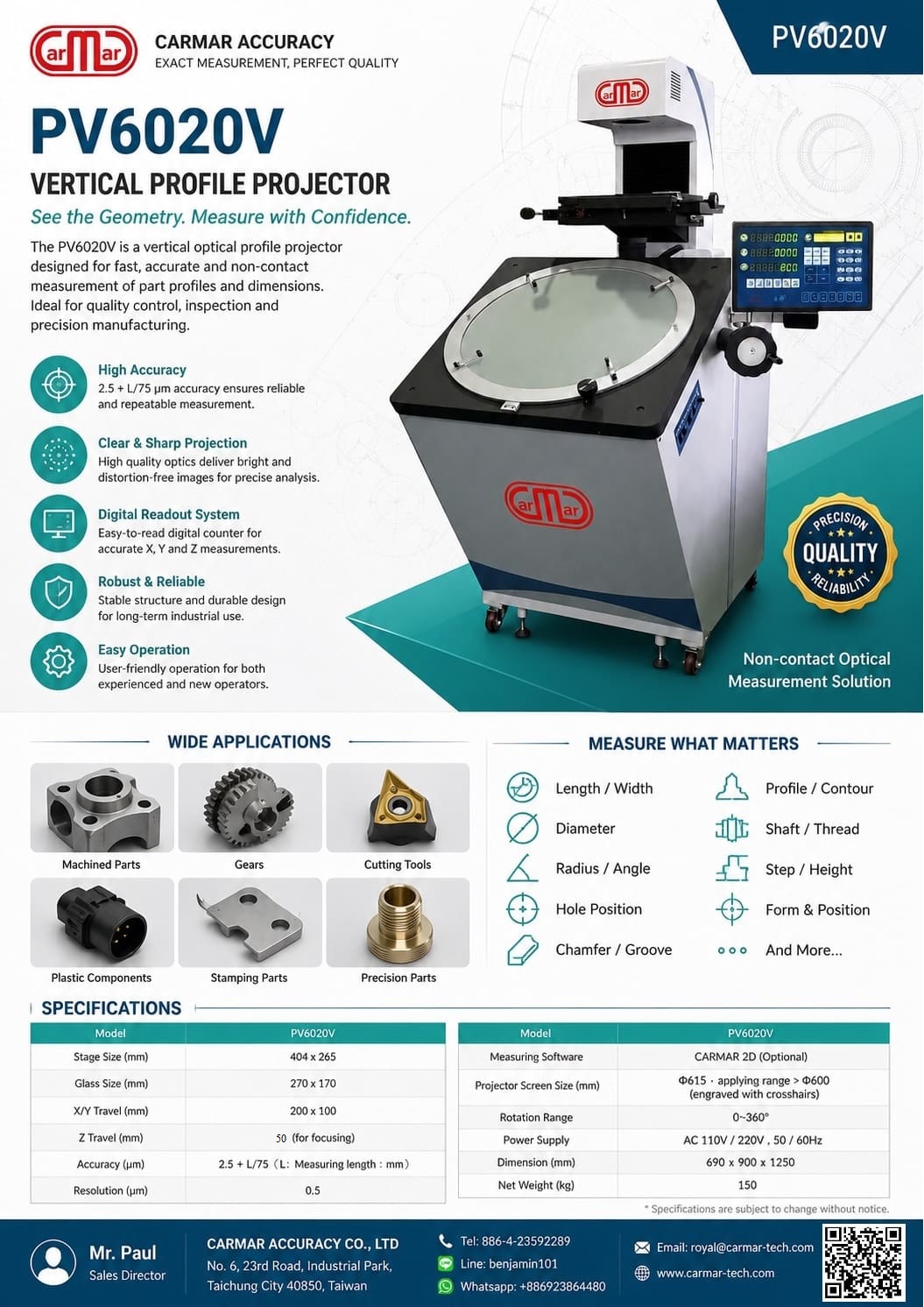

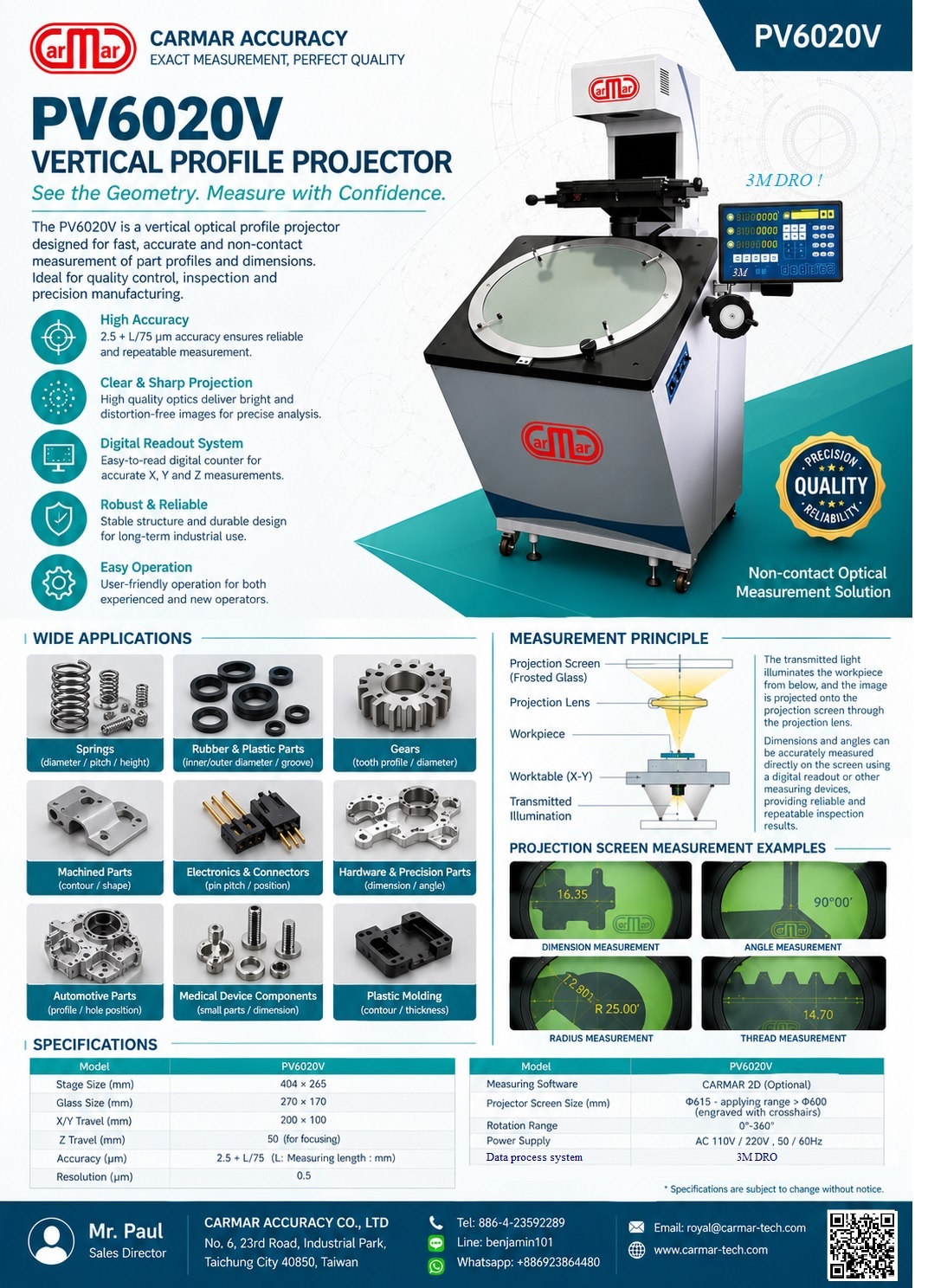

| Model | PV6020V | |||
|---|---|---|---|---|
| Stage Size (mm) | 404 x 265 | |||
| Glass Size (mm) | 270 x 170 | |||
| X/Y Travel (mm) | 200 x 100 | |||
| Z Travel (mm) | 100 (for focusing) | |||
| Accuracy (μm) | 2.5+L/75（L: Measuring length：mm） | |||
| Resolution (μm) | 0.5 | |||
| Measuring Software | CARMAR 2D (Optional) | |||
| Projector Screen |
Size (mm) | Ф 615，applying range > Ф600(engraved with crosshairs) | ||
| Rotation range | 0~360° | |||
| Angel resolution | 1’ or 0.01° | |||
| Objective lens |
Magnification | 5X(standard) | 10X(standard) | 20X(standard) |
| Object view (mm) | Ø120 | Ø60 | Ø30 | |
| Working distance (mm) | 242.8 | 143.2 | 85.5 | |
| Max. work-piece height (mm) | 50 | 50 | 50 | |
| Data process system |
3M multi-function data processing system : Coordinate skew, mm/inch conversion, ABS/INC conversion, Zero setting, % calculation, 0* 90* 270" 360 conversion, linear compensation RS-232 data output |
|||
| Illumination |
Transmission and reflection light source : 24V/150W-halogen lamp |
|||
| Power |
110V/220V(AC)ㆍ50/60Hzㆍ650W total power |
|||
| Light souce cooling |
Forced air cooling |
|||
| Dimensions (mm) | 1200 x 1140 x 1940 | |||
| Weight (kgs) |
360 |
|||
| Optional | The accessories include 2D software, a rotary table, a swivel center support, and an edge detector. For additional accessories, please contact the sales manager. | |||
| All rights reserved to alter the specifications without prior notice. | ||||
