Linear scale & digital readout

Linear scale

Features
1. Superior Quality and Accuracy
2. Unmatched Reliability and Durability
3. Exceptional Anti-Jamming and Environmental Resistance
4. Reliable Maintenance and Longevity
5. Comprehensive After-Sales SupportExperience Precision Like Never Before

Description

Discover the Pinnacle of Precision with Our LS/LE Series Linear Scales

Elevate your machinery's performance with our cutting-edge LS/LE Series Linear Scales. Engineered to perfection, these Linear Scales harness a sophisticated light source and photoelectric receiving module, ensuring unparalleled output signal quality. This translates directly into superior positioning accuracy and movement speed, setting a new standard in the industry.

Why Choose Our Linear Scales?

1. Superior Quality and Accuracy

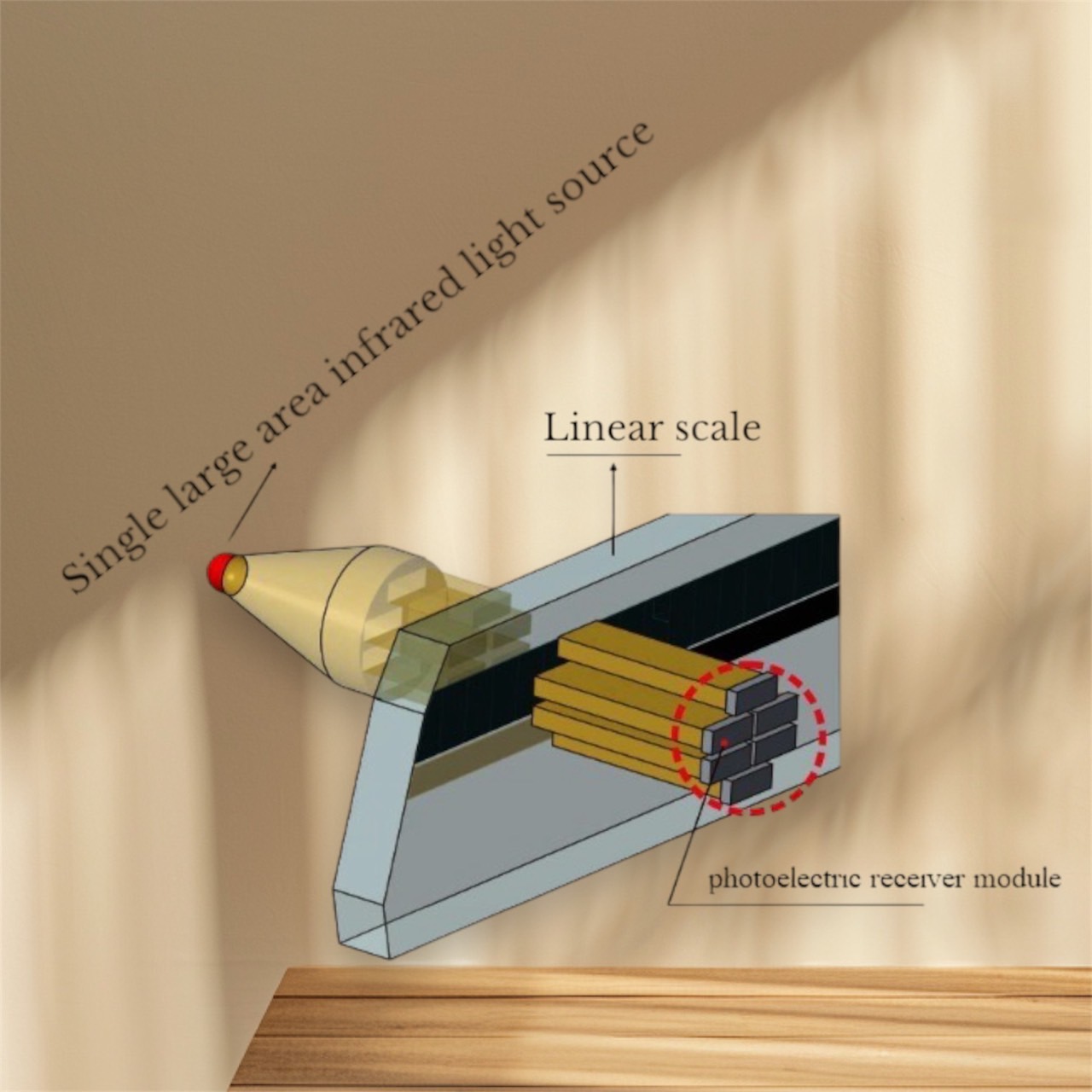

  • Single Light Source Innovation: Our Linear Scales feature a single LED light source and large-area receiving modules, delivering exceptional parallelism and uniform light intensity compared to traditional four-pair tube methods.
  • High-Resolution Performance: With a resolution as fine as 0.5 micrometers, our Linear Scales provide pinpoint accuracy for your applications.

2. Unmatched Reliability and Durability

  • Robust Design: The independent design of our LED light source overcomes the aging issues found in conventional systems, ensuring long-term stability and performance.
  • Advanced Signal Processing: Our sinusoidal signal segmentation chip, featuring pure hardware logic, offers rapid conversion speeds with an impressive output frequency of up to 2.5 MHz.

3. Exceptional Anti-Jamming and Environmental Resistance

  • High Anti-Jamming Capability: The circuit board’s differential processing and peripheral board design boost interference resistance to an outstanding 2200V.
  • Durable Construction: Featuring an integrated gold ball teaching outer cover and patented anti-dry lifting strength, our Linear Scales are built to withstand tough conditions. The special legacy remote carving explosion wheel (patent number: ZL200820044310.3) ensures robust performance in challenging environments.

4. Reliable Maintenance and Longevity

  • Easy Maintenance: Key components, including the flag head, body, drip seat, circuit board, and signal line, are easily removable for quick repairs, minimizing downtime and maintenance costs.
  • Proven Durability: Each optical ruler undergoes rigorous anti-jamming and aging tests, with precision moisture testing included for added reliability.

5. Comprehensive Support

  • Exceptional Service: Our dedicated after-sales team is ready to address any concerns and ensure your equipment operates flawlessly.

Experience Precision Like Never Before

Choose the LS/LE Series Linear Scales for superior accuracy, reliability, and durability in your operations. With our cutting-edge technology and unwavering support, you can trust that you are investing in the best. Contact us today to learn more and revolutionize your machinery with our state-of-the-art Linear Scales.



Table of Comparison: The Impact of Receiving Processing Methods on Optical Measurement Performance

Receiving Processing Method Carmar Single Row Optical Receiving Module Four Tube Separate Receiving Module
Receiving Area Good (Uniformity is good) Small
Signal Stability Good (Uniformity is good) Poor
Response Speed Fast Average
Signal Interference Resistance Strong (Uniform decay, minor impact after decay) Average
Long-Term Signal Decay in Operation Uniform decay (minor impact after decay) Large variation in decay
External Maintenance Rate Low High

Table of Comparison: The Impact of Light Sources on Optical Measurement Performance

Light Source Carmar Single Row Light Source Four Tube LED Light Source
Uniformity of Light Field Good (3°) Poor (15°)
Uniformity of Light Intensity Good Poor (Inconsistency)
Achievable Resolution High (Resolution of 0.5 µm at 20 µm spacing) Low (Resolution of 1 µm at 20 µm spacing, unstable for long-term operation)
Impact of Long-Term Operation on Light Intensity Stability and Resolution Small (Only small degradation in light intensity received, minimal impact on measurement performance) Large (Separate decay, inconsistent light intensity weakening, significant impact on performance)
Post-maintenance Cost Low High (Noticeable after one year)

For more information, you can click here to check our additional resources: Blog.

Add Inquiry (0)
Added to Inquiry list.

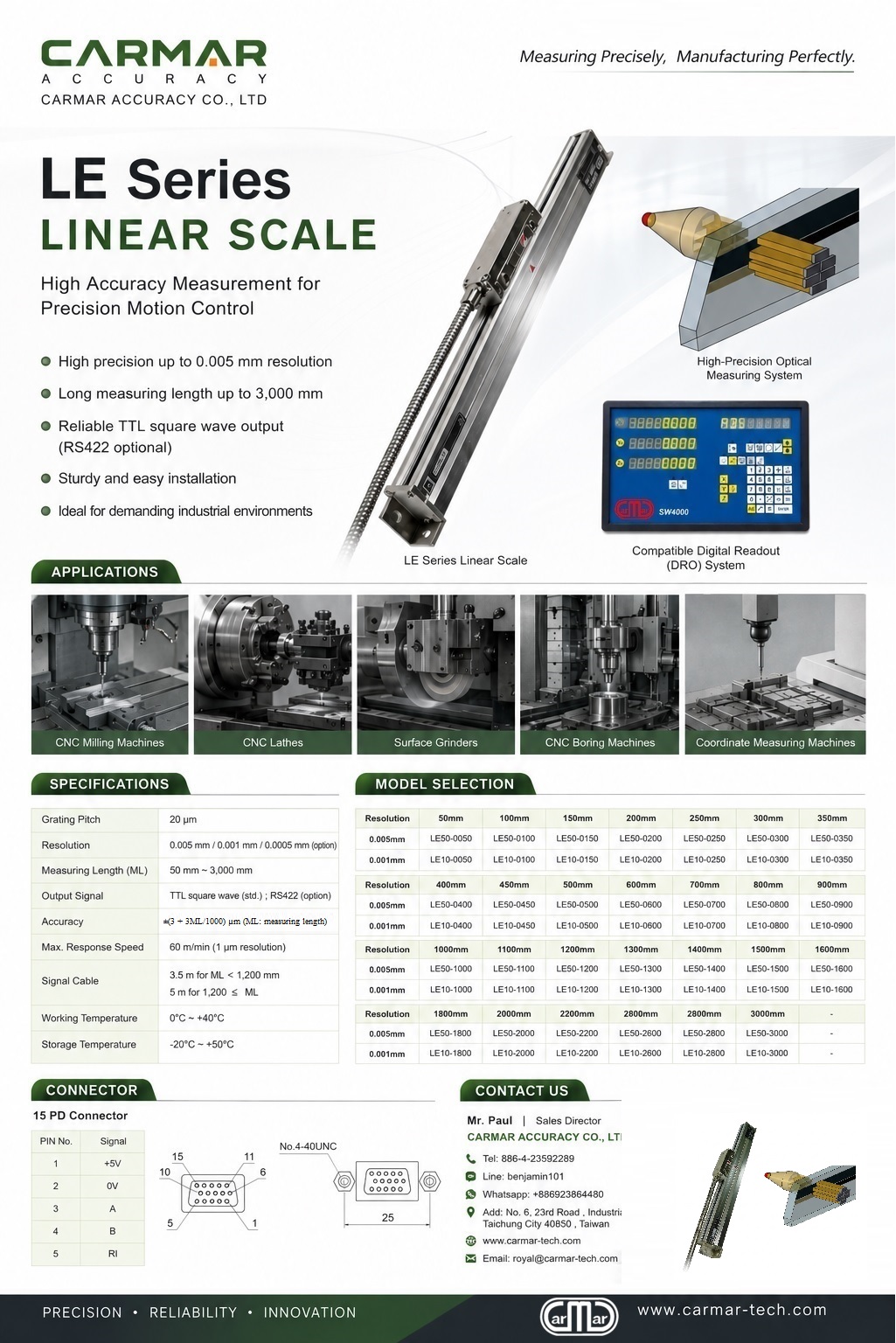

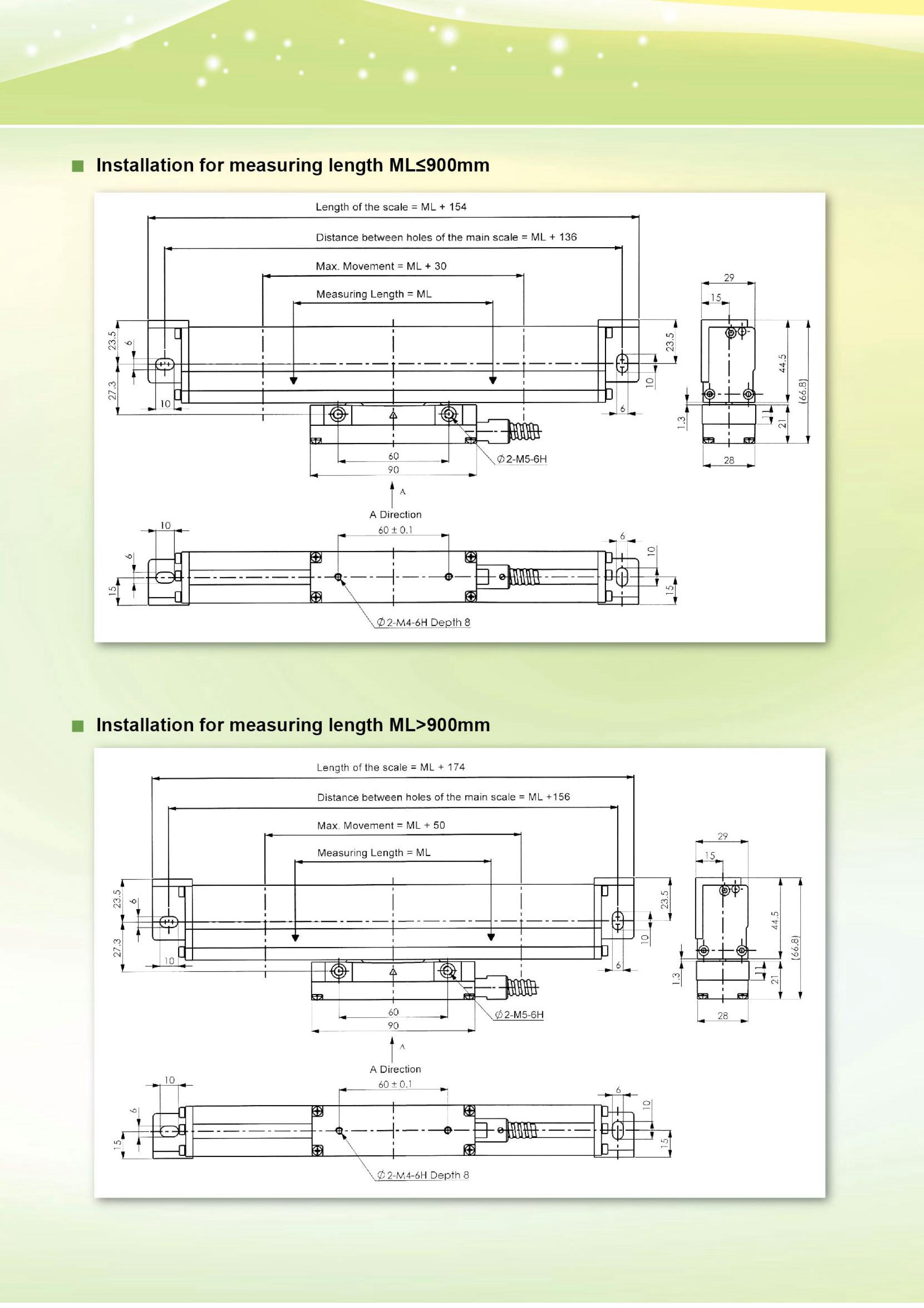

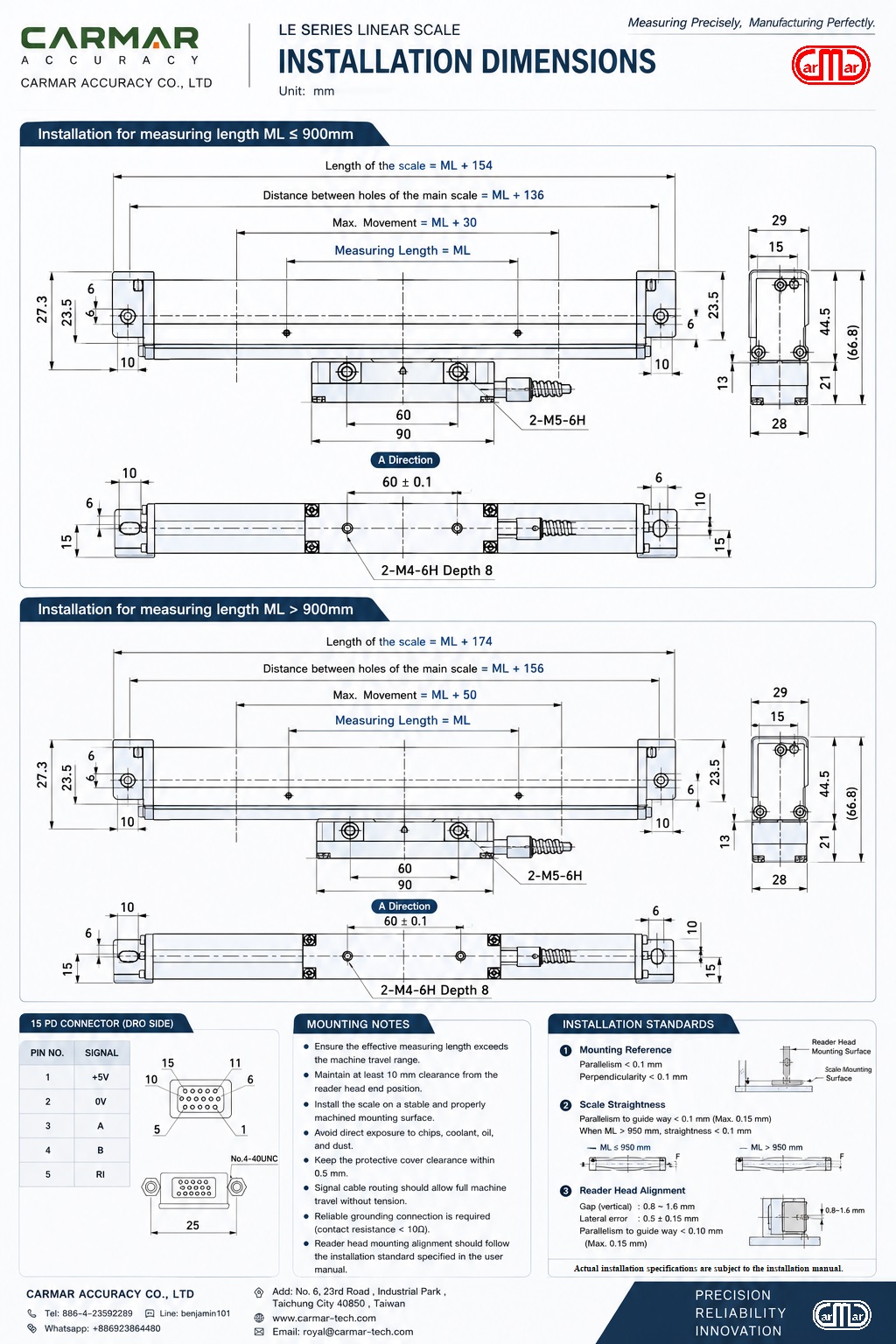

Specifications

Grating pitch 20 µm
Resolution 0.005 mm，0.001 mm ，0.0005 mm (option)
Measuring length (ML) 50 mm ~ 3,000mm
Output signal TTL square wave (std.) ; RS422 (option)
Accuracy ± ( 5 + L/200 ) µm ; L: measuring length (mm)
Max. Response Speed 60 m/min (1 µm resolution)
Signal Cable 3.5 m for ML ＜1,200mm, 5 m for ML ≧1,200mm
Working temperature 0℃- +40℃
Storage temperature -20℃- +50℃

Linear scale
Res.\ ML 50mm 100mm 150mm 200mm 250mm 300mm 350mm
0.005mm LE50-0050 LE50-0100 LE50-0150 LE50-0200 LE50-0250 LE50-0300 LE50-0350
0.001mm LE10-0050 LE10-0100 LE10-0150 LE10-0200 LE10-0250 LE10-0300 LE10-0350
Res.\ ML 400mm 450mm 500mm 550mm 600mm 650mm 700mm
0.005mm LE50-0400 LE50-0450 LE50-0500 LE50-0600 LE50-0700 LE50-0800 LE50-0900
0.001mm LE10-0400 LE10-0450 LE10-0500 LE10-0600 LE10-0700 LE10-0800 LE10-0900
Res.\ ML 1000mm 1100mm 1200mm 1300mm 1400mm 1500mm 1600mm
0.005mm LE50-1000 LE50-1100 LE50-1200 LE50-1300 LE50-1400 LE50-1500 LE50-1600
0.001mm LE10-1000 LE10-1100 LE10-1200 LE10-1300 LE10-1400 LE10-1500 LE10-1600
Res.\ ML 1800mm 2000mm 2200mm 2600mm 2800mm 3000mm
0.005mm LE50-1800 LE50-2000 LE50-2200 LE50-2600 LE50-2800 LE50-3000
0.001mm LE10-1800 LE10-2000 LE10-2200 LE10-2600 LE10-2800 LE10-3000
