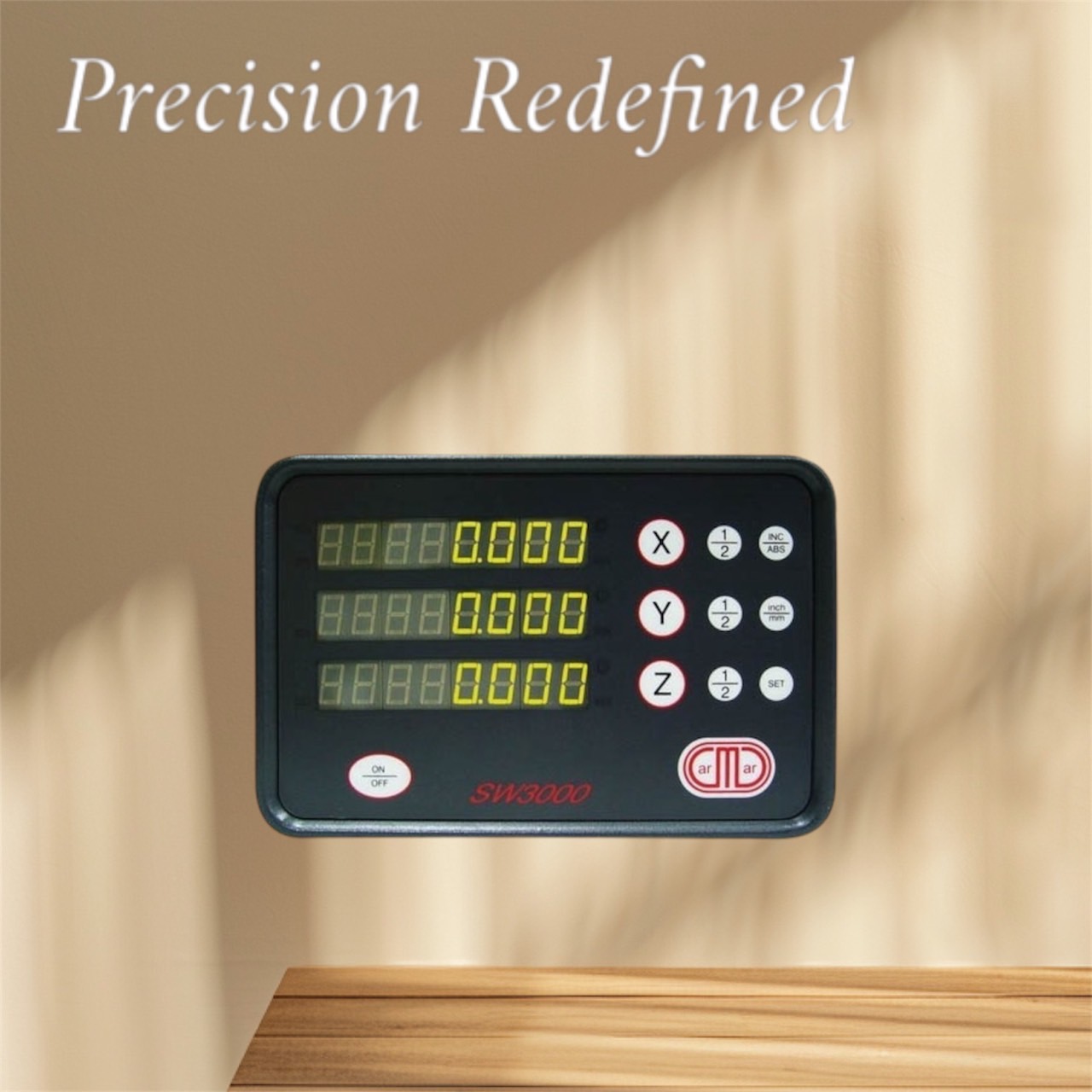

Digital Readout SW3000

Features
1. Wide Voltage Range**: Operates on DC 8V-30V with low power consumption (0.08A).
2. High-Precision Resolution**: Adjustable linear scale (up to 0.0001mm) and rotary encoder (up to 0.0001°).
3. Robust Build**: Made from aluminum alloy with excellent EMC capability (2000V).
4. Versatile Software Functions**: Includes zero setting, unit conversion, diameter/radius selection, and error compensation.
5. Data Retention & Output**: Features instant power failure memory and RS232 data output.

Description

Digital Readout Features

Exceptional Design and Functionality

Our digital readout comes with a variety of high-efficiency features designed to provide accurate measurement data and enhance user convenience. Here are the main features of the digital readout:

Durable Aluminum Alloy Casing

The digital readout features a durable aluminum alloy casing that offers excellent durability and electromagnetic interference resistance, up to 2,000V, ensuring stable operation in various environments.

Multiple Measurement Options

  • Zeroing and 1/2 Function: Allows for precise measurements with ease.
  • Imperial/Metric Switch: Easily switch between millimeters (mm) and inches to meet different requirements.
  • Absolute/Relative Coordinate Switch: Quick switching between INC and ABS modes.
  • Diameter/Radius Selection: Users can choose to calculate either diameter (RAD) or radius (DIA).

Enhanced Operational Convenience

  • Configurable Counting Direction: Set according to user preferences.
  • Linear Error Compensation: Increases measurement accuracy.
  • Instant Power Loss Value Memory: Automatically saves the last reading during power loss to prevent data loss.
  • Self-Diagnostic Error Calculation: Provides timely fault diagnosis to ensure normal equipment operation.
  • RS232 Value Output: Facilitates data transfer and storage, meeting modern data management needs.

Conclusion

Our digital readout, with its high performance and multifunctional features, is the ideal choice for industrial measurement. Whether for daily use or professional applications, it meets various user needs while ensuring measurement accuracy and reliability.

Add Inquiry (0)
Added to Inquiry list.


Specifications

Hardware
1. Input voltage : DC 8V-30V , 0.08A
2. Linear scale settable resolution (mm) : 0.0001 , 0.0002 , 0.0005 , 0.001 , 0.002 , 0.005 , 0.01 , 0.02 , 0.05 , 0.1 , 0.2 , 0.5 , 1 , 5 , 10
3. Rotary encoder settable resolution (degrees) : 1 ~ 0.0001
4. Aluminum alloy body, excellent capability in EMS (2000V).


Functionality
1. Zero setting.
2. 1/2 calculation, locate work piece center
3. mm/ inch conversion.
4. INC/ ABS conversion
5. Diameter/ Radius selection.
6. DIR: Setting the coordinate direction.
7. Error compensation:Linear compensation.
8. Instant power failure memory.
9. Self-diagnostic function for calculation error.
10. RS232 output.
