Linear scale & digital readout

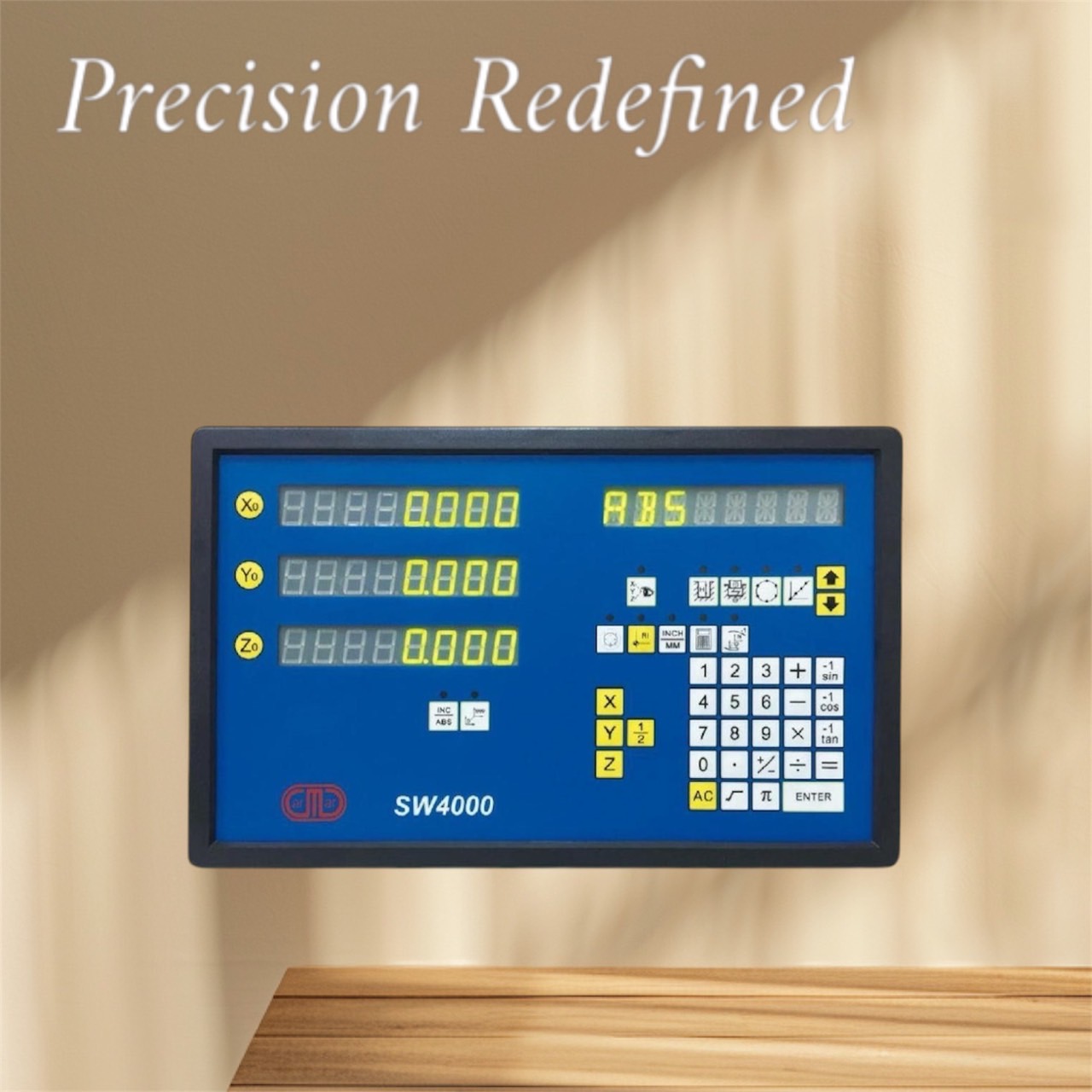

Digital Readout SW4000

Features
Wide Voltage Range**: AC 90V - 240V with low power consumption (max 15W).
High Precision Resolution**: Adjustable from 0.1μm to 50μm.
Versatile Functionality**: Includes coordinate zero setting, ½ calculation, and ABS/INC conversion.
Advanced Machining**: Supports bolt circle, R-angle, oblique line drilling, and more.
Data Retention & Error Compensation**: Instant power failure memory and linear error compensation.

Description

Advanced Features of Our Digital Readout Systems

Our digital readout systems are designed to enhance precision and efficiency in machining. Here are some of the key features:

  • Durable Plastic Housing: Our digital readouts come with robust plastic casings, ensuring longevity and protection.
  • Zeroing and Coordinate Functions: Features include zeroing capabilities, 1/2 function, diameter/radius selection (RAD/DIA), and absolute/relative coordinate switching (/products/INC/ABS).
  • User-Customizable Settings: Store up to 1000 user coordinate scaling rates, perform calculations, and locate machine origins (RI).
  • Complex Hole Patterns: Easily manage circular and inclined hole patterns with our digital readout systems.
  • Linear Error Correction: Compensate for mechanical errors to ensure precise measurements.
  • Power Failure Memory: Retain your last readings even after sudden power outages.
  • Arc Processing: Compatible with SW4000-2 and SW4000-3 for advanced arc machining.
  • Inclined Surface Processing: Efficiently handle inclined surface machining with our specialized systems.
  • EDM Processing: The SW4000-E model supports electrical discharge machining (EDM).
  • Edge Finding Function: Optional accessory for enhanced functionality (available for purchase).

Upgrade your machining processes with our cutting-edge digital readout systems and experience unmatched precision and control.

Add Inquiry (0)
Added to Inquiry list.

Specifications

Hardware Specifications
1. Input voltage : AC 90V - 240V
2. Power consumption : Max. 15W
3. Dimension : 295mm x 185mm x 45mm
4. Plastic housing
5. Weight : 1.45 kg
6. Linear scale signals : Orthogonal TTL square wave, frequency < 2 MHz, Current > 1 mA
7. Resolution Selection: 0.1µm, 0.2µm, 0.5µm, 1µm, 2µm, 5µm, 10µm


Software Functions
1. Coordinate zero setting.
2. ½ calculation, locating work piece center.
3. ABS/ INC conversion, Diameter/ Radius selection.
4. Shrink function.
5. DIR: Setting the coordinate direction.
6. RI detection: setting and recalling a datum for machining.
7. Error compensation: linear compensation.
8. ROTARY ENCODER: 1°~0.0001°.
9. Instant power failure memory.
10. Multiple machining functions:
    (1) Bolt Circle machining
    (2) R-angle
    (3) Divide holes on an oblique line
    (4) Machining on an oblique line
**Order number:**
1. Arc machining, Ramp machining (SW4000-2, SW4000-3)
2. EDM machining (SW-4000-E)
3. Edge detecting, Lathe function (optional)
