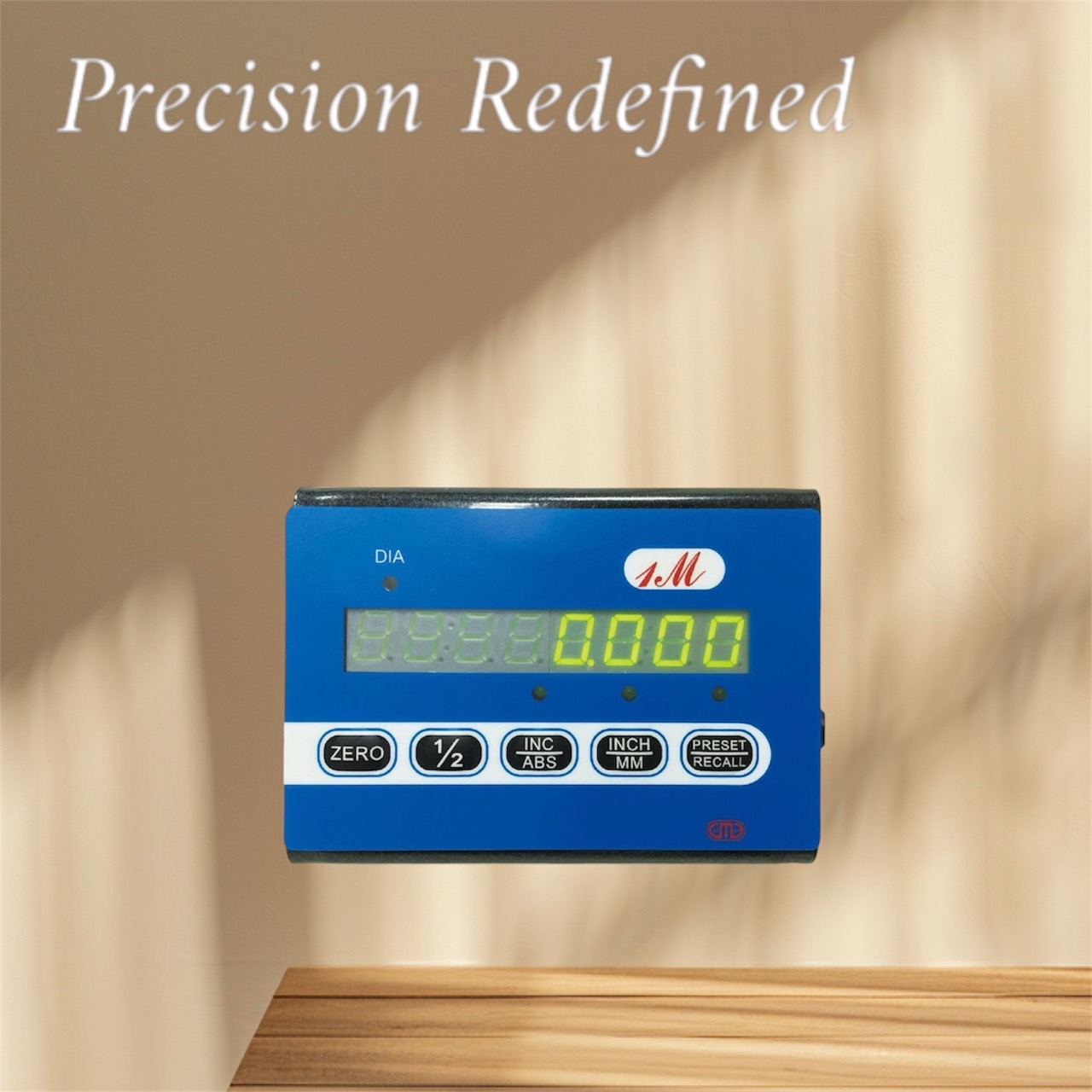

- Digital Readout 1M
Linear scale & digital readout
Digital Readout 1M
- Features
- 1. **High-Speed Counting**: 24-bit IC with up to 4m/s counting speed at 0.001mm resolution.
- 2. **Clear and Durable Display**: High-brightness digital tube with a robust tactile keypad.
- 3. **Power Loss Memory**: Retains position data without batteries after power loss.
- 4. **Versatile Connectivity**: Supports grating scales and encoders for various measurement needs.
- 5. **RS-232 Output**: Outputs display values to a computer for data analysis.
Description
The 1M DRO is designed for simple single-axis displacement measurement. It works with a grating measurement system to analyze, process, and display displacement data.**Features:**
1. **High-Speed Counting**: Equipped with a 24-bit dedicated counting IC, achieving up to 4m/s counting speed at 0.001mm resolution.
2. **Clear Display**: High-brightness digital tube for clear numerical display.
3. **Durable Controls**: Premium, long-lasting tactile keypad.
4. **Power Loss Memory**: No batteries needed; retains position data after power loss.
5. **Versatile Connectivity**: Compatible with both grating scales and encoders for various machining and measurement needs.
6. **Strong Interference Resistance**: Enhanced ability to handle electrical noise.
7. **Compact and Lightweight**: Small form factor and light weight.
**Functions:**
1. **Zeroing**: Reset values to zero.
2. **Centering**: Center numerical values.
3. **Preset Values**: Set and recall preset values.
4. **Absolute/Relative Switching**: Toggle between absolute and relative coordinates.
5. **Unit Conversion**: Switch between metric and imperial units.
6. **Diameter/Radius Selection**: Choose between diameter and radius measurements.
7. **Linear Compensation**: Apply linear compensation to the grating scale.
8. **RS-232 Output**: Output current grating scale display values to a computer via RS-232.
Specifications: | |
---|---|
Input voltage | DC 9V |
Power | Less than 10W |
Input signal | Orthogonality TTL square wave; frequency<2MHZ; electric current>1mA |
Resolution | 0.1, 0.5, 1, 5, 10, 50 |
Weight | 1 kg |
Dimension | 104 x 77 x 31.5 (mm) |
