Linear Gauge
Pen Linear Gauge
- Features
- 1. High Precision Measurement**: The PLG series employs a glass grating with exceptional precision and a low coefficient of expansion, combined with high-precision ball bearings, ensuring accurate and reliable length measurements.
- 2. Reflective Signal Acquisition**: It integrates a reflective signal acquisition module, which enhances the precision and stability of measurements by improving signal detection and reducing noise.
- 3. Ultra-Fine Resolution**: The gauge provides a remarkable resolution of up to 0.1µm, allowing for extremely detailed and precise measurements in small ranges.
Description
Pen Lengh Gauge PLG
The PLG series length gauge is a high-precision length measurement sensor designed for small measuring ranges. It has a compact installation space, a long service life, and finds applications in areas such as product measurement, multi-point inspection, measuring equipment testing, and position measurement.
Product Features
1. Utilizes a glass grating with high precision and a low coefficient of expansion, along with high-precision ball bearings.
2. Incorporates a reflective signal acquisition module.
3. Achieves a resolution of up to 0.1µm.
4. Supports interchangeable M2.5 scale heads.

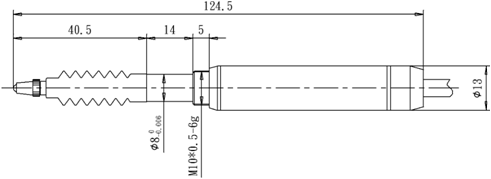

10mm

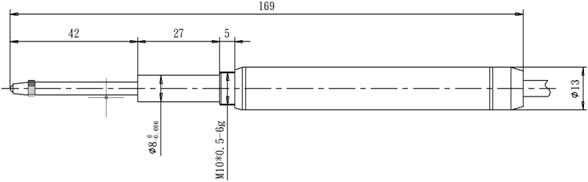

30mm
Specifications
| Model | 10 mm | 30 mm | ||
|---|---|---|---|---|
| Measuring range | 0-11 mm | 0-31 mm | ||
| Signal (μm) | TTL/HTL/RS422Incremental Signal | |||
| Resolution | 0.1, 0.2, 0.5. 1, 2, 4 | |||
| Accuracy (μm) | ± 1.5 | |||
| Reference point | Approximately 5 mm from the end | |||
| Measurement Force | <1.5N | |||
| Speed | <30m/min | |||
| Power | 5VDC(<150MA) | |||
| Working Temperature | 10~+40˚C Standard temperature of 20 degrees | |||
| Storage Temperature | -10~+50˚C | |||
| Cable Length | Standard configuration includes 3m (maximum length = 20m) with 9 PD standard connectors. | |||
| Thread of the Measuring Head | M2.5 | |||
