One click - Automatic Large Image
- Features

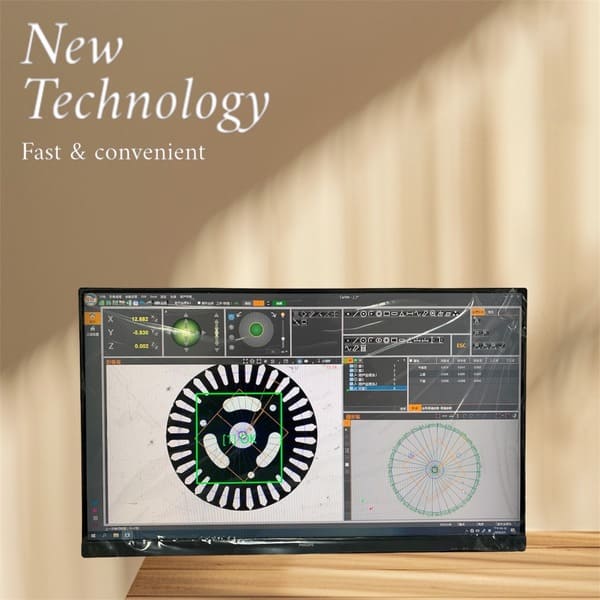

- Custom Stitching View: Customize the stitched image view.
- Field of View Setting: Set the field of view, measure the entire area for a single file creation.

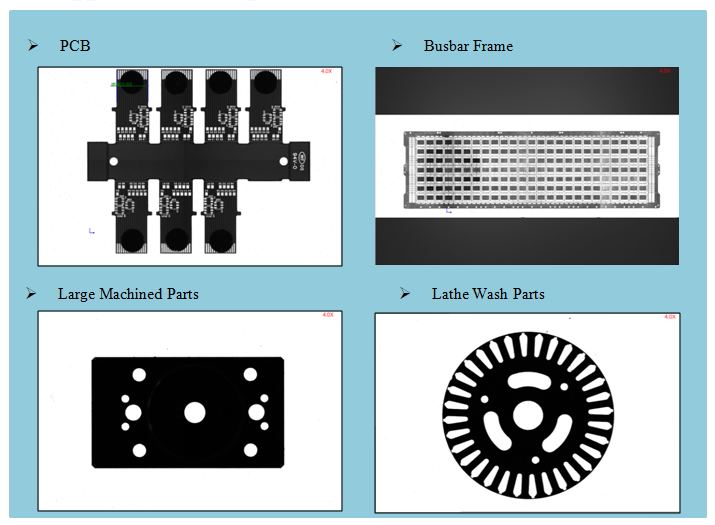

- Multi-Workpiece Measurement: Measure multiple workpieces at the same time.
- Quick Stitching: Stitch a 200 mm x 200 mm image within 40 seconds.
Description

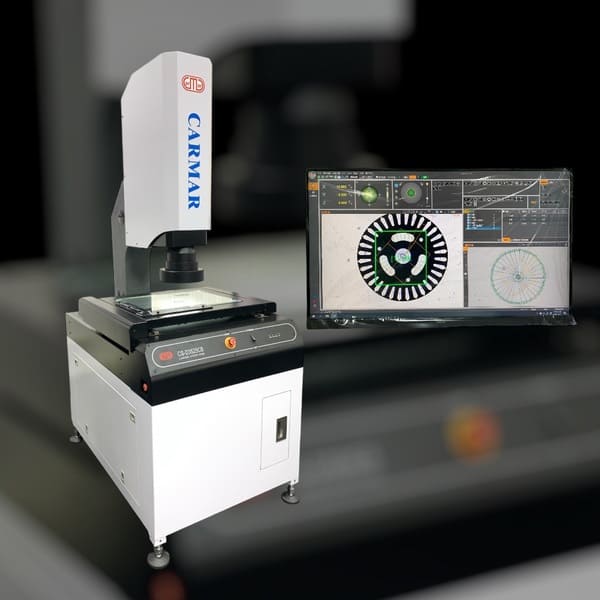

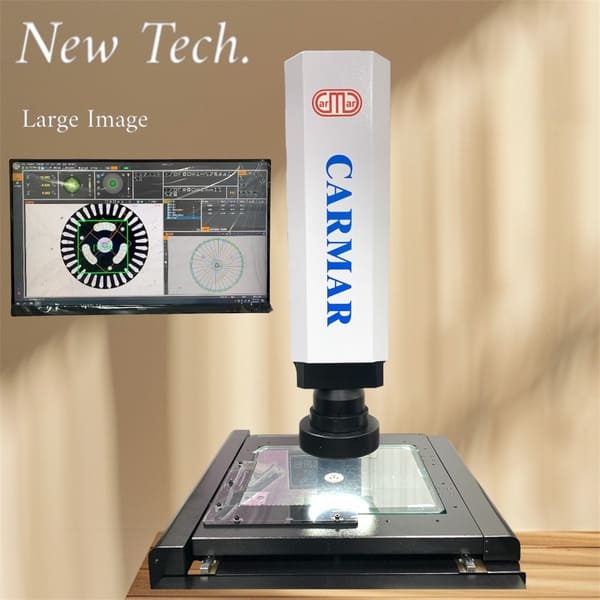

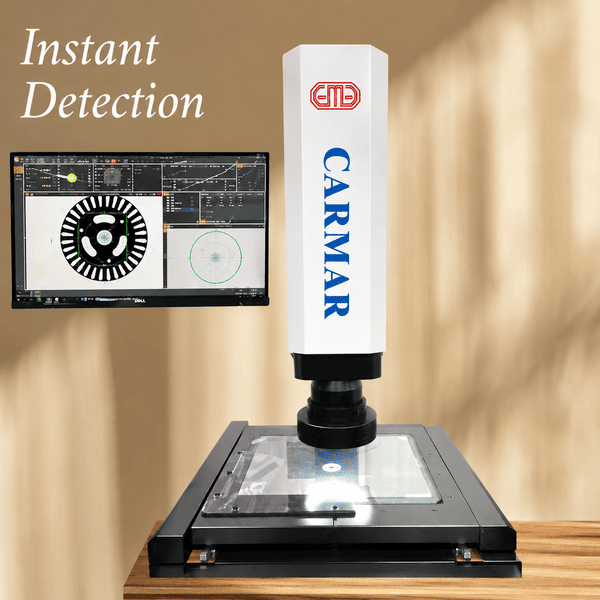

Video Measuring Machine: One-Click Automatic Large Image System
Our advanced Video Measuring Machine with One-Click Automatic Large Image technology revolutionizes quality control in modern manufacturing. This innovative video measurement system enhances inspection efficiency while significantly reducing defects through automated measurement processes.
1. Advanced Incoming Inspection with Video Measurement
Utilize our Video Measuring Machine's large-field imaging capability for comprehensive incoming material inspection. This advanced video measurement system enables early defect detection, allowing for timely quality control decisions and preventing the use of substandard components.
2. Precise Experimental Batch Inspection
During prototyping phases, our Video Measuring Machine's automatic large image technology ensures precise measurement and verification. The system's advanced optical measurement capabilities help maintain strict quality standards before mass production, effectively preventing waste and ensuring consistent product quality.
Key Benefits of Our Video Measuring System
- Automated Measurement: One-click operation streamlines the inspection process
- High Precision: Advanced video measuring technology ensures accurate results
- Large Field Imaging: Comprehensive view for detailed inspection
- Efficient Processing: Rapid measurement and analysis capabilities
Conclusion
Our Video Measuring Machine with One-Click Automatic Large Image technology represents the future of quality assurance in manufacturing. This advanced video measurement solution combines precision, efficiency, and automation to deliver superior inspection results.
Discover more about our advanced video measuring solutions in our detailed resources: VIDEOS
.png)

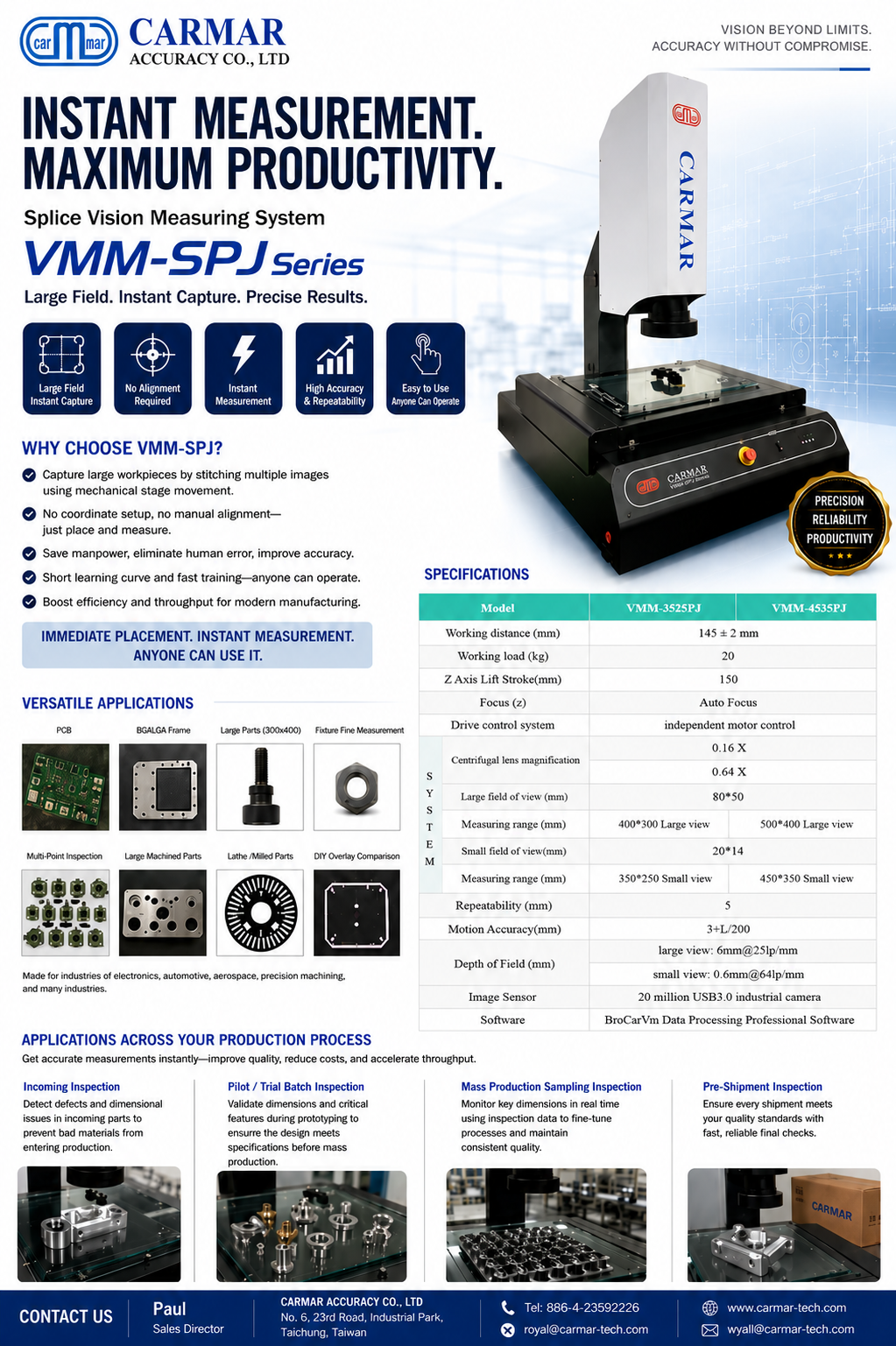

Specifications
| Model | WCS-D3525CB | WCS-D4535CB | |
|---|---|---|---|
| Working distance (mm) | 145 ± 2 mm | ||
| Working load (kg) | 20 | ||
| Table Lift Stroke(mm) | 150 | ||
| Focus (z) | Auto Focus | ||
| Drive control system | independent motor control | ||
|
S Y
S T E M |
Centrifugal lens magnification | 0.16 X | |
| 0.64 X | |||
| Large field of view (mm) | 80*50 | ||
| Measuring range (mm) |
400*300 Large view | 500*400 Large view | |
| Small field of view(mm) | 20*14 | ||
| Measuring range (mm) |
350*250 Small view | 450*350 Small view | |
| Repeatability (mm) | 5 | ||
| Motion Accuracy(mm) | 3+L/200 | ||
| Depth of Field (mm) | large view: 6mm@25Ip/mm | ||
| small view: 0.6mm@64Ip/mm | |||
| Image Sensor | 20 million USB3.0 industrial camera | ||
| Software | CARVM Data Processing Professional Software | ||
| Lighting System | Surface light and bottom light respectively | ||
| Dimensions(mm)(L x W x H) | 1000*690*1755 | 1130*810*1800 | |
| Weight (kg) | About 500 kg | About 570 kg | |
| Rights reserved to change specifications without prior notice | |||
