Video Measuring Machine
Video Measuring Machine-Automatic
- Features
- Tailored Development:** Meets diverse measurement needs.
- Efficient Inspection:** Rapid auto focus, edge detection, and advanced programming.
- Precision:** Sub-pixel technology for enhanced boundary resolution.
- Flexible Operation:** Control handle and software options.
- Batch Processing:** SPC capabilities reduce time and labor costs.
- High Accuracy:** servo control.
- Stable Control:** Embedded module for improved stability.
- Adaptive Lighting:** Eight-zone cold light source for complex workpieces.
- Quick Positioning:** Laser indicator for efficient location.
- Customizable:** Supports zoom lenses, coaxial lights, and laser sensors.
- Easy Installation:** Linear guide rails eliminate air supply needs.
- Robust Design:** Glass worktable and granite base for stability and capacity.
- High-Speed Measurement:** Boosts overall efficiency.
Description
Video Measuring Machine: Advantages of the Large Stroke Fully Automatic Video Measuring Machine
The large stroke fully automatic video measuring machine (linear rail type) is an advanced device designed for high-precision measurement, widely applicable across various industries, especially in the mechanical and electronics sectors. This instrument integrates automation technology, effectively enhancing measurement efficiency and accuracy.
Product Applications

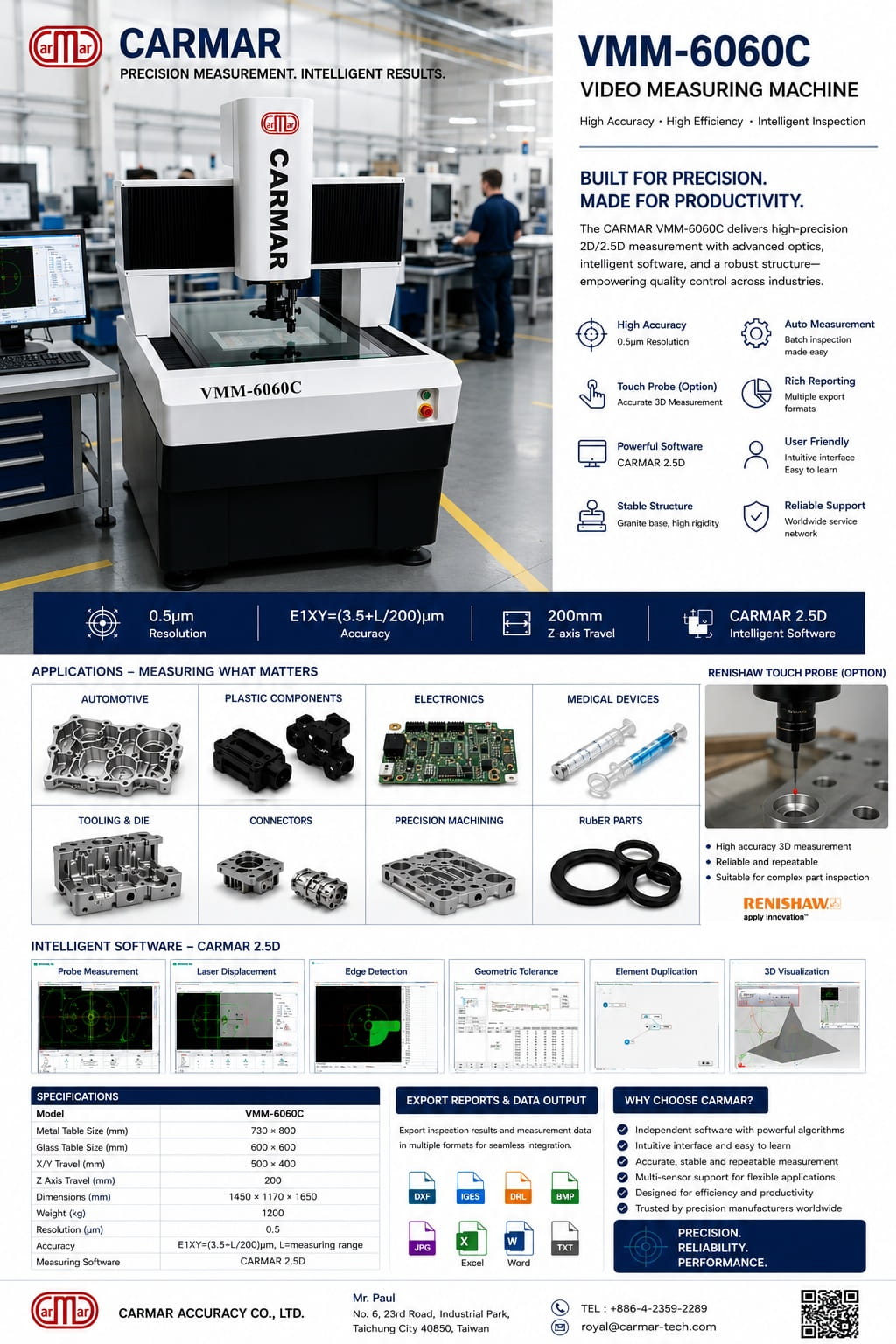

The VMM-6060C/8010C is a fully automatic video measuring machine with a large working range, primarily designed for two-dimensional measurement, but also capable of three-dimensional auxiliary measurement. It is widely used in mechanical processing, electronic component testing, and other industrial fields.
Conclusion
In summary, the large stroke fully automatic video measuring machine serves as an essential tool for precise measurement across various industries with its outstanding performance and flexible application range. Whether in quality control or product development, it provides stable and reliable measurement solutions to help businesses enhance product quality and productivity.
For more information, you can click here to check our additional resources: VIDEOS.
Specifications
| Model | VMM-6060C | VMM-0810C | ||
|---|---|---|---|---|
| Metal table size (mm) | 730 x 800 | 930 x 1200 | ||
| Glass table size (mm) | 600 x 600 | 800 x 1000 | ||
| X/Y Travel (mm) | 500 x 400 | 800 x 1000 | ||
| Weight (kg) | 1200 | 2000 | ||
| Dimensions (mm) | 1450 × 1170 × 1650 | 1650 × 1570 × 1650 | ||
| Resolution (μm) | 0.5 | |||
| Z axis travel (mm) | 200 | |||
| Accuracy | E1XY=(3.5＋L/200)μm, L=measuring range | |||
| Measuring Software | CARMAR 2.5D | |||
| Video system |
Camera | High Resolution Color Camera | ||
| Total Magnifications | 0.7~4.5× zoom lens Total magnification: 33～212× Field of view: 9.6 mm～1 mm This is a estimated value, it will change based on different size of monitor |
|||
| Power Supply | AC:240V 50/60 Hz 1500W |
|||
| Rights reserved to change specifications without prior notice | ||||
