Video Measuring Machine
Video Measuring Machine-Automatic
- Features
- Precise & Intuitive Control: Auto-focus and joystick ensure accurate, easy operation.
- Stable & Accurate Measurements: Fixed table with granite base supports precise positioning and high-speed tasks.

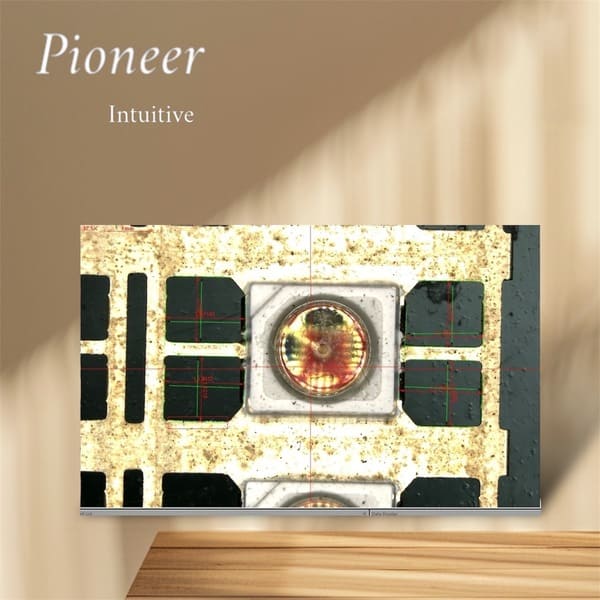

- High-Resolution Imaging & Illumination: Color camera with zoom lens and cold-light source for clear, accurate visuals.
- Seamless Integration & Data Transfer: USB interface connects smoothly with professional software.
- Advanced CNC Software: Windows-based software offers in-depth analysis and reporting.
Description

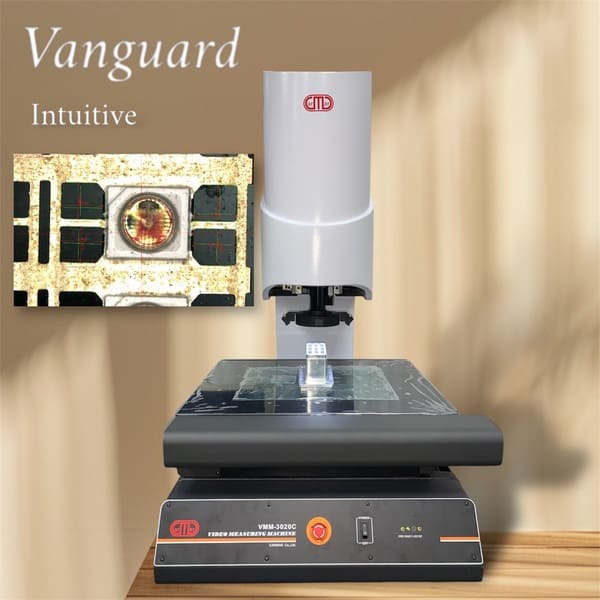

Advanced CNC Video Measuring Machine: Precision Measurement Solutions by Carmar
Experience superior measurement accuracy with the Carmar CNC Video Measuring Machine. Our advanced CNC measurement system combines high-resolution camera technology with precise automation, delivering exceptional performance for both 2D and 3D measurement applications.
Advanced Features of Our CNC Video Measuring Machine
- Intelligent Automation: Our CNC video measuring system streamlines the measurement process, minimizing operator intervention while maximizing accuracy.
- High-Volume Capability: The advanced CNC video measuring technology enables rapid processing of large batch measurements with consistent precision.
- Enhanced Accuracy: The integrated CNC measurement system significantly reduces human error, ensuring reliable results every time.
- Optimized Efficiency: Our CNC video measuring machine boosts productivity through automated workflows and intelligent measurement sequences.
Comprehensive Applications of CNC Video Measuring Technology
The Carmar CNC Video Measuring Machine excels in both 2D and 3D measurements across diverse industrial applications:
- High-precision electronic component inspection
- Advanced mold measurement and verification
- Professional tool, spring, and screw analysis
- Precise plastic, rubber, and oil seal measurement
- Detailed bicycle and motor component inspection
- Advanced camera parts and PCB measurement
Our CNC video measuring system is the preferred choice for metrology labs, research facilities, manufacturing workshops, and quality control departments.
Transform Your Measurement Capabilities
Elevate your quality control processes with the advanced Carmar CNC Video Measuring Machine. Experience the perfect combination of precision, automation, and efficiency in one comprehensive measurement solution.
Discover more about our CNC video measuring solutions in our detailed resources: VIDEOS.

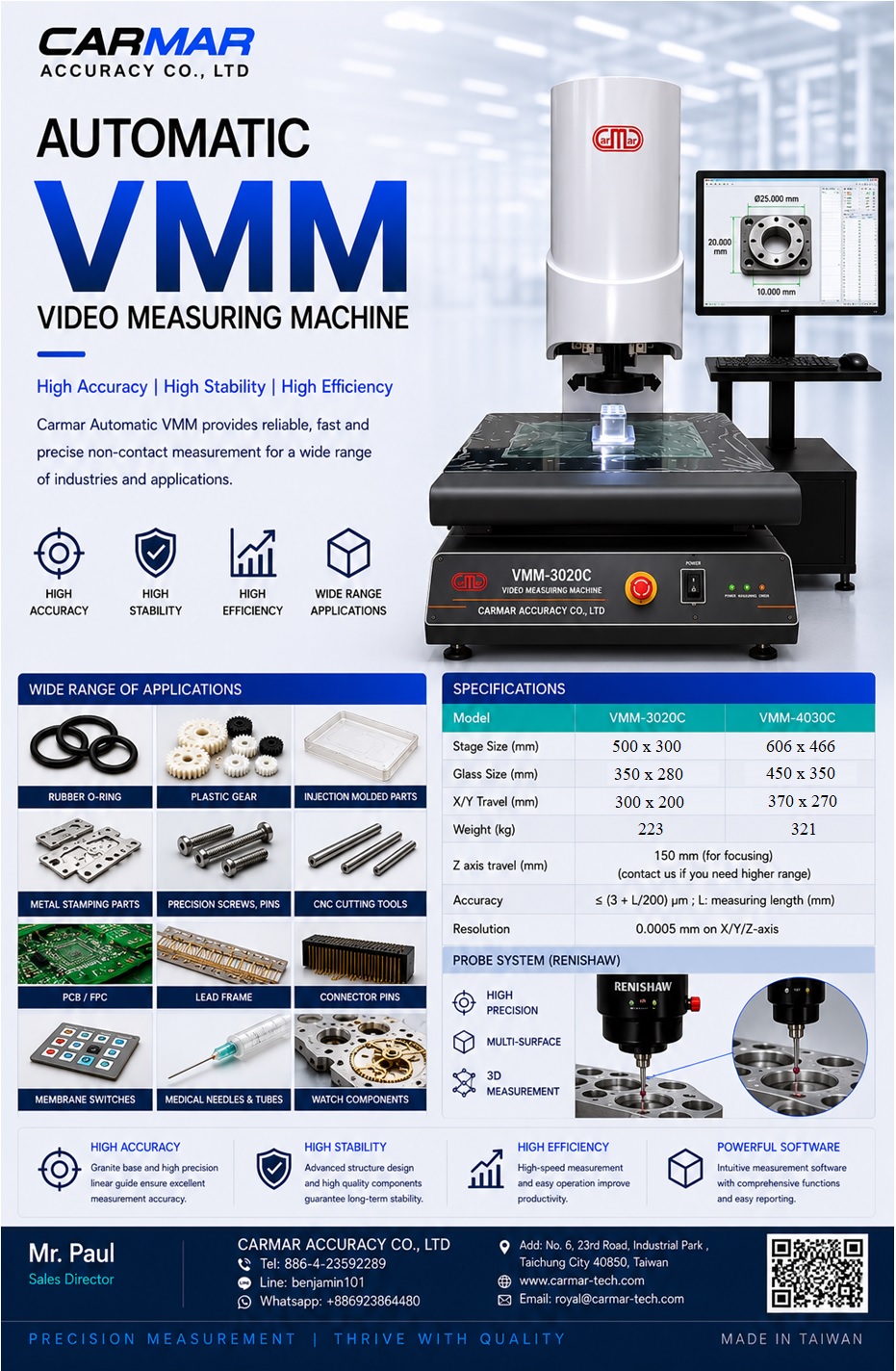

Specifications
| Model | VMM-2515C | VMM-3020C | VMM-4030C | |
|---|---|---|---|---|
| Stage Size (mm) | 450 x 280 | 500 x 300 | 606 x 466 | |
| Glass Size (mm) | 306 x 196 | 350 x 280 | 450 x 350 | |
| X/Y Travel (mm) | 220 x 120 | 300 x 200 | 370 x 270 | |
| Weight (kg) | 201 | 223 | 321 | |
| Z axis travel (mm) | 150 mm (for focusing) (contact us if you need higher range) | |||
| Accuracy | ≤ ( 3 + L/200 )μm ; L: measuring length (mm) | |||
| Resolution | 0.0005 mm on X/Y/Z-axis | |||

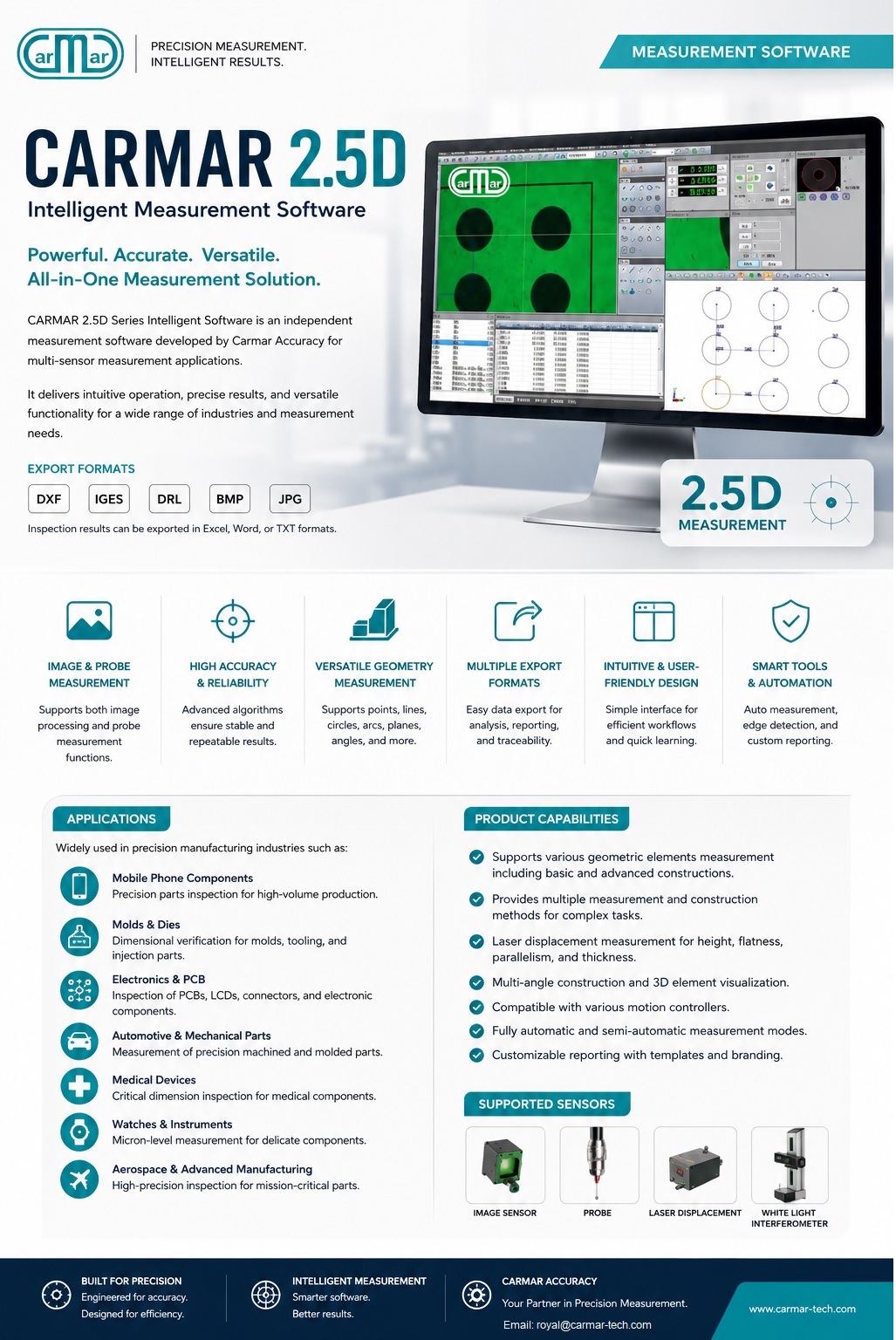

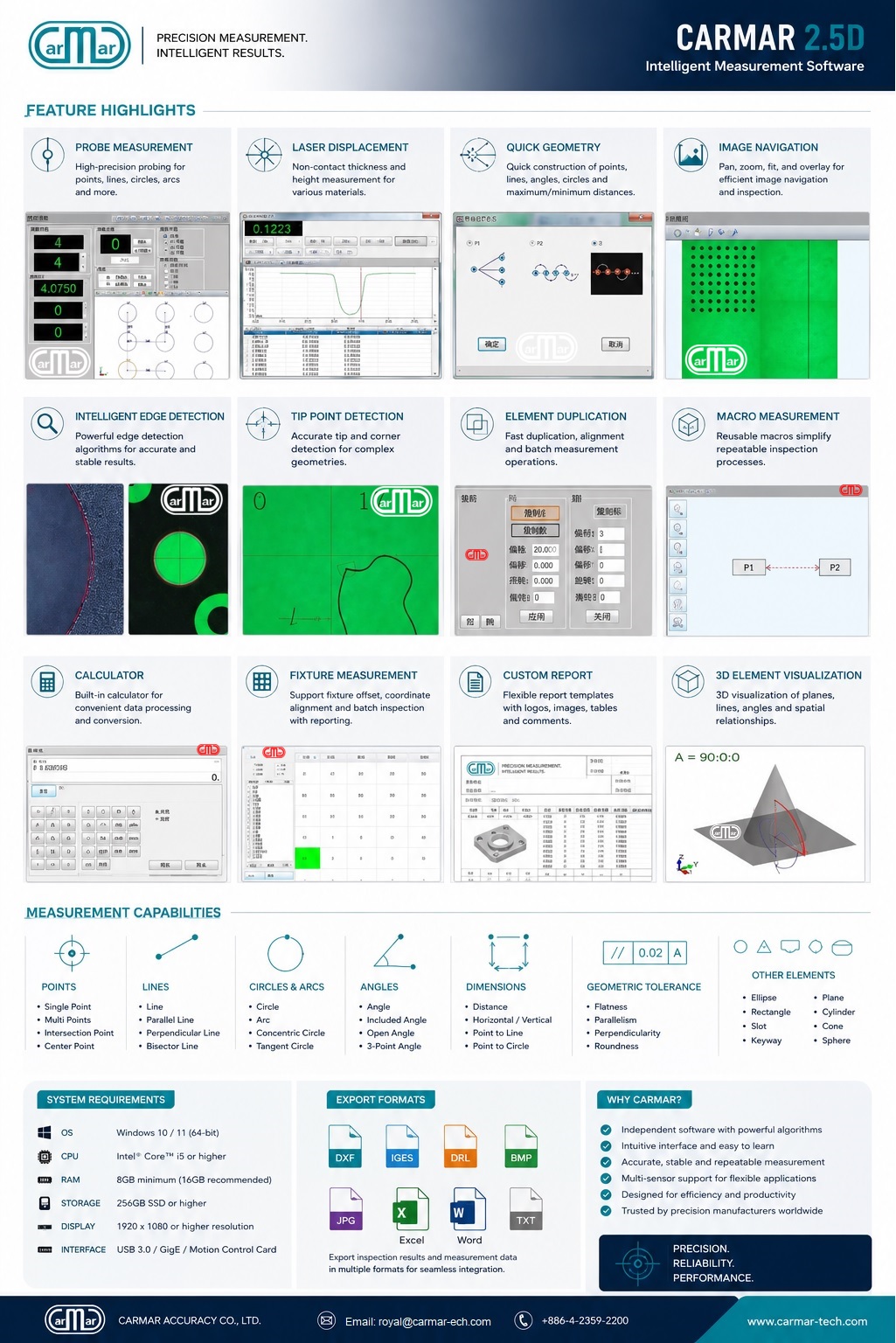

| Measuring Software | CARMAR 2.5D series | |||
| Video System | VMM-D series | |||
| Color Camera：Color IP Camera Lightening System : Cold-light source Surface and Transmission illumination Standard: Manual Zoom Lens : Magnification of field lens : 0.7X - 4.5X , Total Magnifications : 23.5X - 148X, Object View : 11.1mm - 1.7mm (Value above is calculated by certain monitor, the value will change based on different size of monitor) |
||||
| Lightening System | Adjustable LED Surface and Transmission illumination | |||
| Power Supply | single phase, AC220V, 50Hz, 250W(not including PC) | |||
