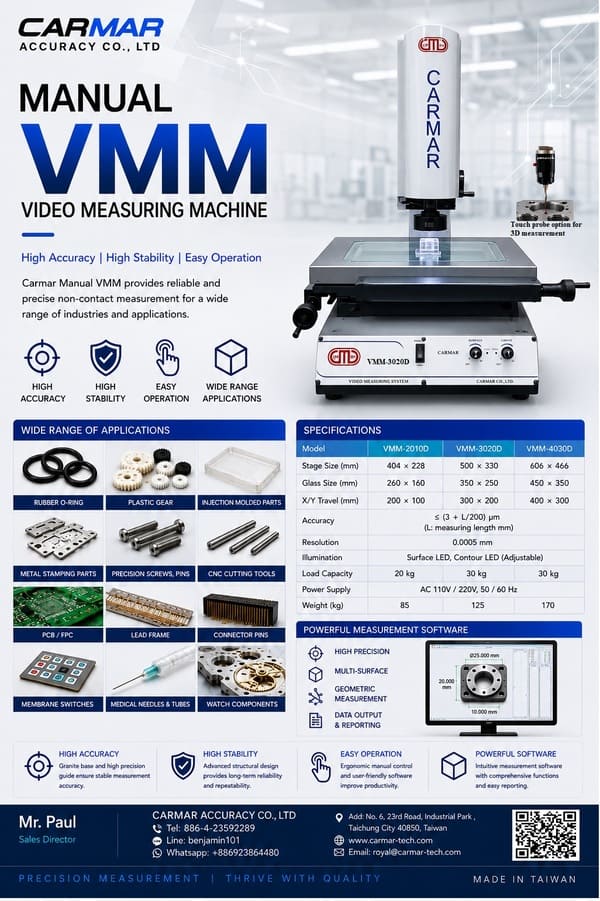

Video Measuring Machine

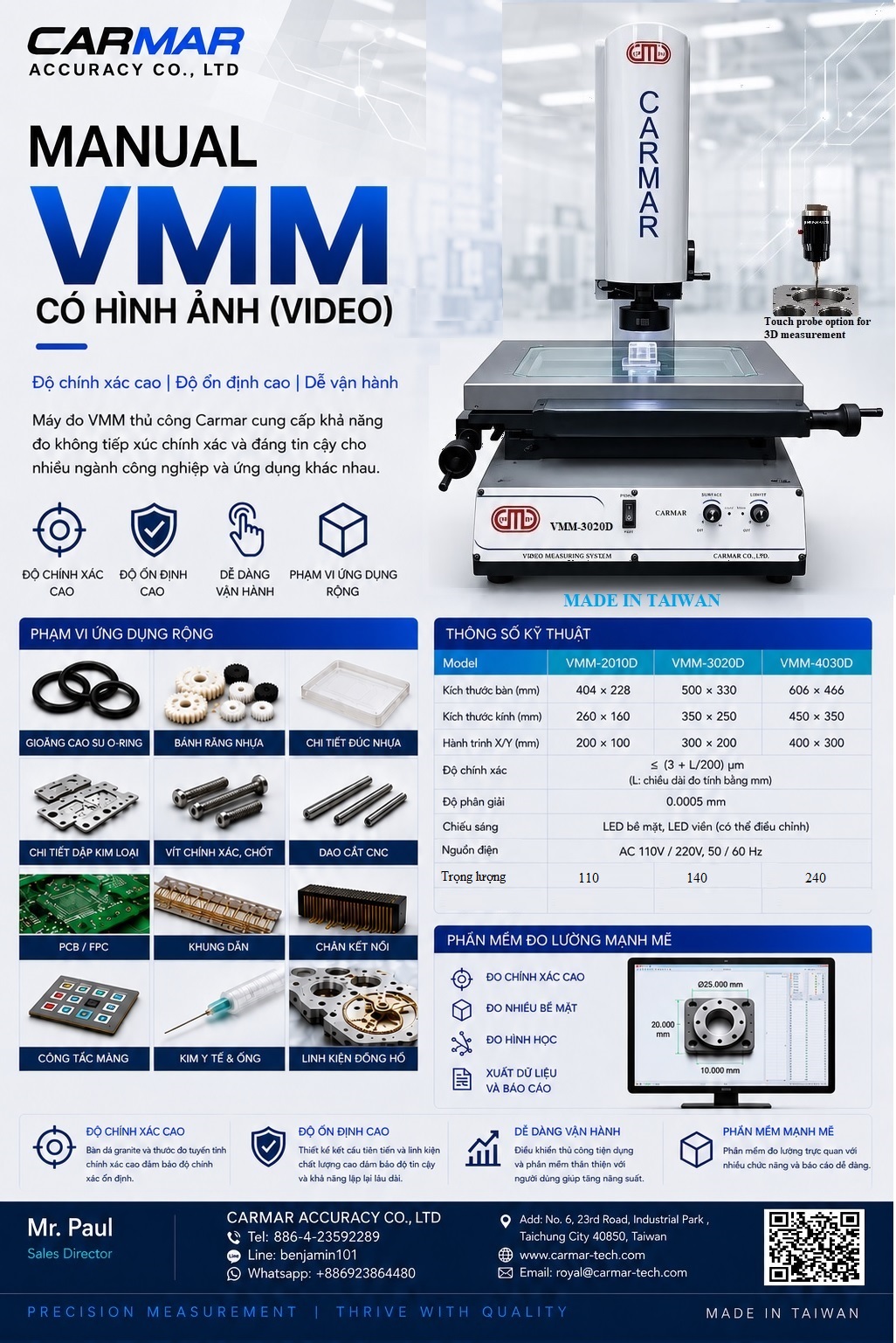

Video Measuring Machine-Manual
- Features
- Video Measuring Machine, VMM loads high accuracy with fixed working table and granite pedestal.
- USB interface can do communication between measuring software and computer.
- Optional : High resolution color camera with sharp images.
- The user can manage and output the graphs as bmp or DWG format by connecting with PC and running the program.
- One-click edge detection.
Description
Professional Video Measuring Machine: Advanced Precision Measurement Solutions
Experience the Superior Performance of Carmar Video Measuring Machine

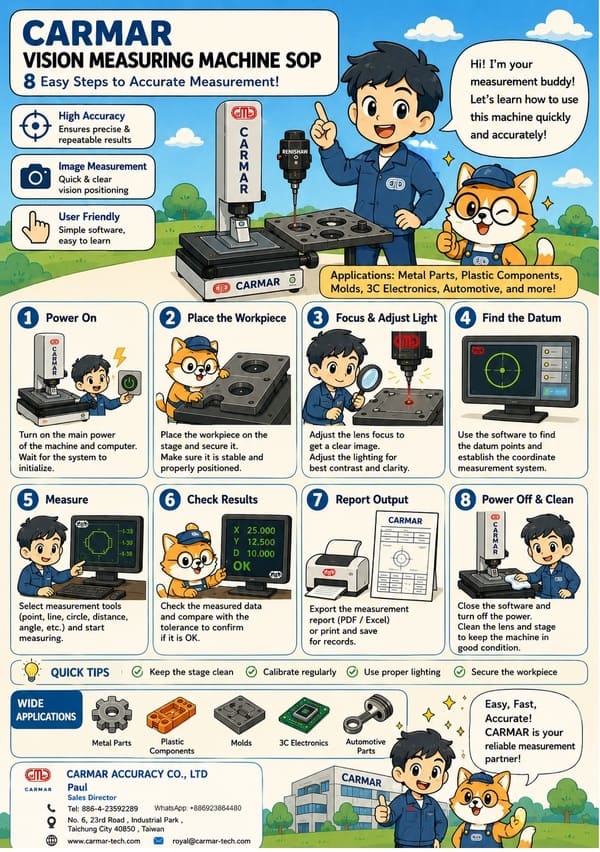

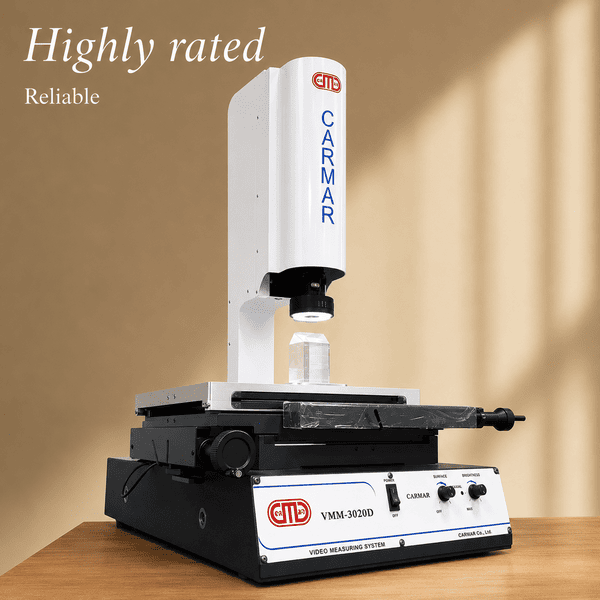

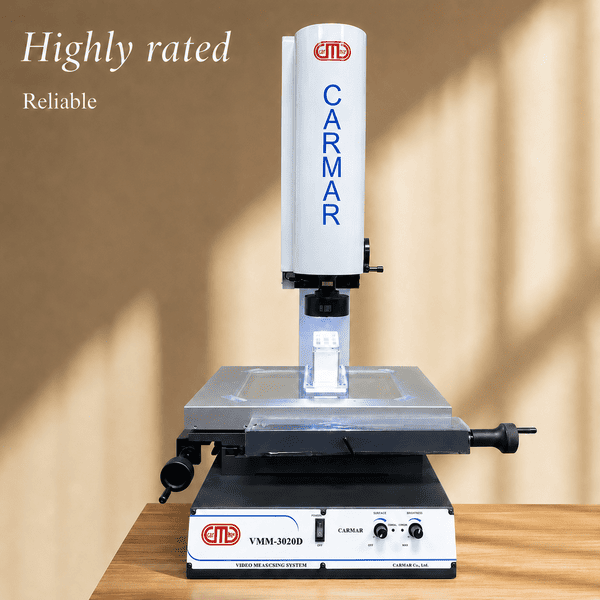

The Carmar Video Measuring Machine represents the latest advancement in optical measurement technology. Our state-of-the-art video measuring machine combines high-resolution CCD cameras with sophisticated measurement software to deliver unparalleled accuracy and efficiency. This advanced video measuring machine system excels in both 2D and profile measurements, making it the perfect choice for quality control and inspection tasks.
Advanced Features of Our Video Measuring Machine
- Intuitive Operation: Our video measuring machine features an easy-to-use interface that allows operators to achieve mastery quickly, maximizing productivity and measurement efficiency.
- Premium Measurement Accuracy: The integrated video measuring system provides exceptional linear accuracy and repeatability, ensuring reliable results for every measurement task.
- Smart Automation Features: Advanced video measuring machine capabilities reduce manual intervention, minimize errors, and optimize operational efficiency.
Comprehensive Applications
Our professional video measuring machine is engineered to meet diverse industry requirements:
- High-precision cutting tools and electronic component inspection
- Advanced mold measurement and verification
- Precise spring and screw dimension analysis
- Detailed plastic and rubber seal inspection
- Camera and bicycle parts quality control
- Comprehensive motor and PCB inspection
The Carmar video measuring machine is essential equipment for quality control laboratories, research facilities, and industrial measurement applications, providing reliable measurement solutions for both academic and industrial purposes.
Elevate Your Measurement Capabilities with Our Video Measuring Machine
Take your measurement accuracy to the next level with Carmar's advanced video measuring machine technology. Our video measuring systems combine precision, efficiency, and ease of use in one comprehensive package. Contact our team today to learn how our video measuring machine solutions can enhance your quality control processes. For detailed specifications and case studies, visit our resource center: VIDEOS.

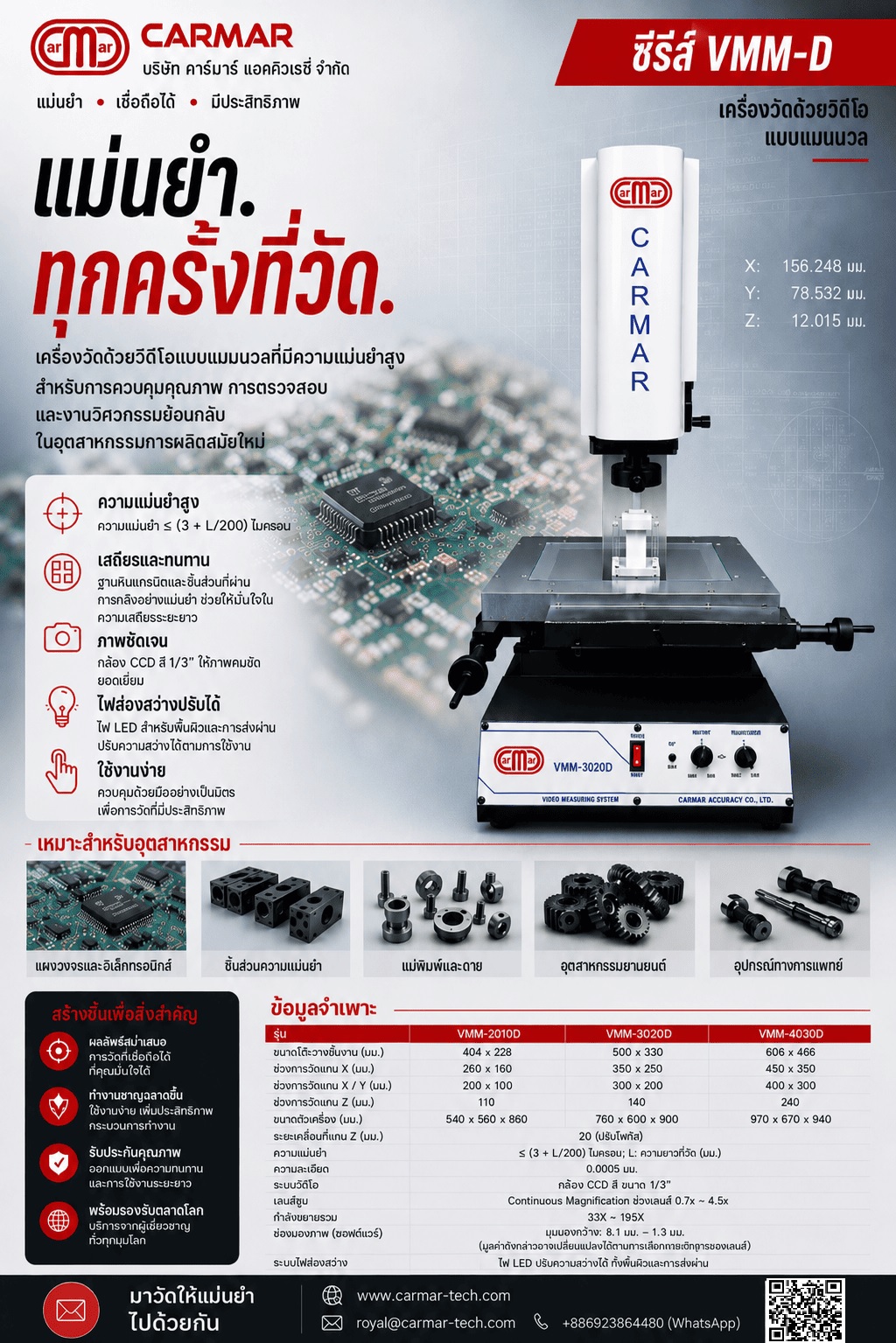

Specifications
| Model | VMM-1510D | VMM-2010D | VMM-2515D | VMM-3020D | VMM-4030D | |
|---|---|---|---|---|---|---|
| we also have S type to load 1/2" CCD, contact us if you need it. | Contact us if you need larger travel range | |||||
| Stage Size (mm) | 354 x 228 | 404 x 228 | 450 x 280 | 500 x 330 | 606 x 466 | |
| Glass Size (mm) | 210 x 160 | 260 x 160 | 306 x 196 | 350 x 280 | 450 x 350 | |
| X/Y Travel (mm) | 150 x 100 | 200 x 100 | 250 x 150 | 300 x 200 | 400 x 300 | |
| Weight (kg) | 100 | 110 | 120 | 140 | 240 | |
| Dimensions (mm) | 540 x 560 x 860 | 760 x 600 x 900 | 970 x 670 x 940 | |||
| Z axis travel (mm) | 200 mm (for focusing) (contact us if you need higher range) | |||||
| Z working range (mm) | VMM-D series: 105 mm Optional Lens: 92 mm | |||||
| Accuracy | ≤ ( 3 + L/200 )μm ; L: measuring length (mm) | |||||
| Digital Display Resolution | Digital Display : 3M(DC3000) DRO (Optional) Resolution : 0.0005 mm |
|||||

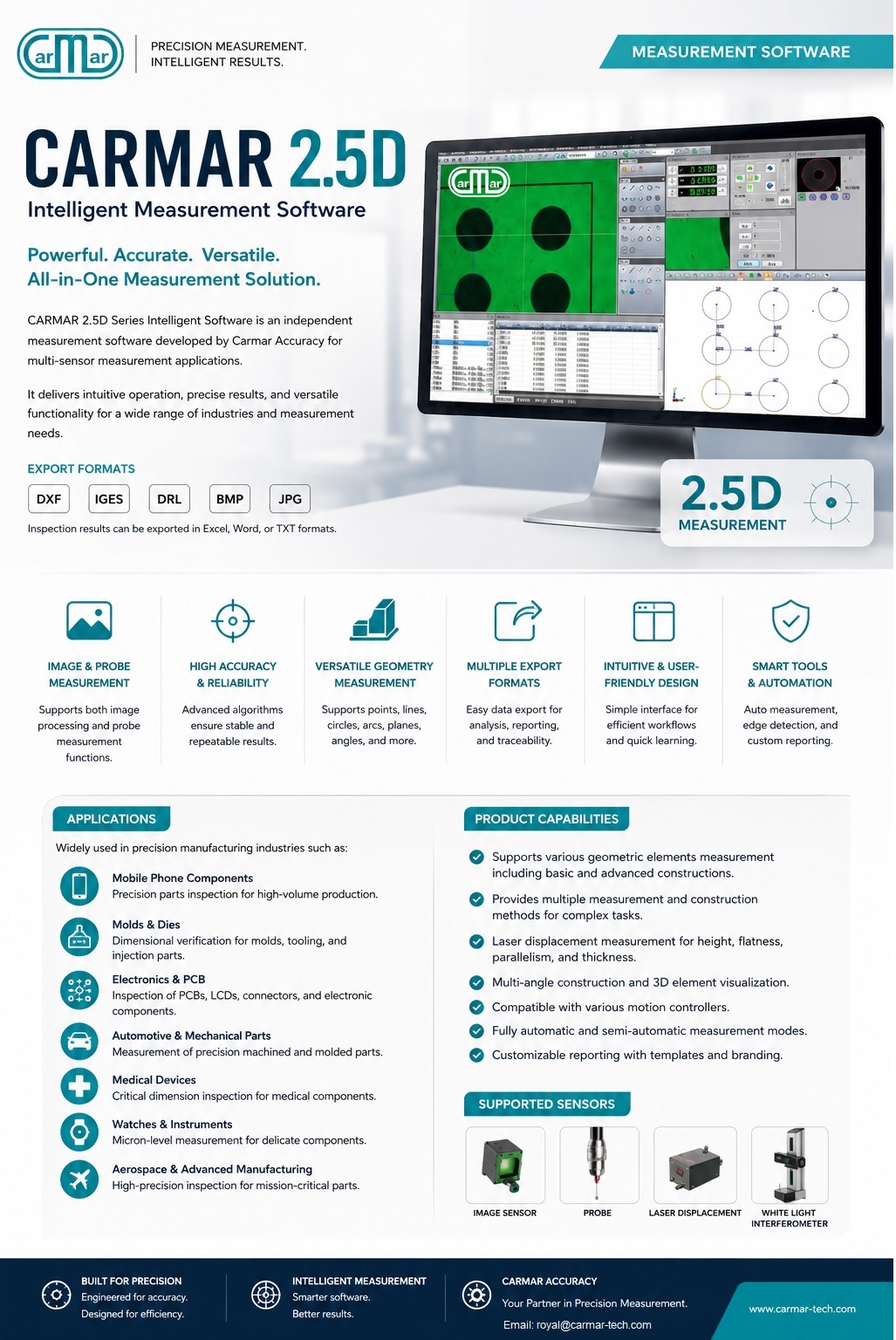

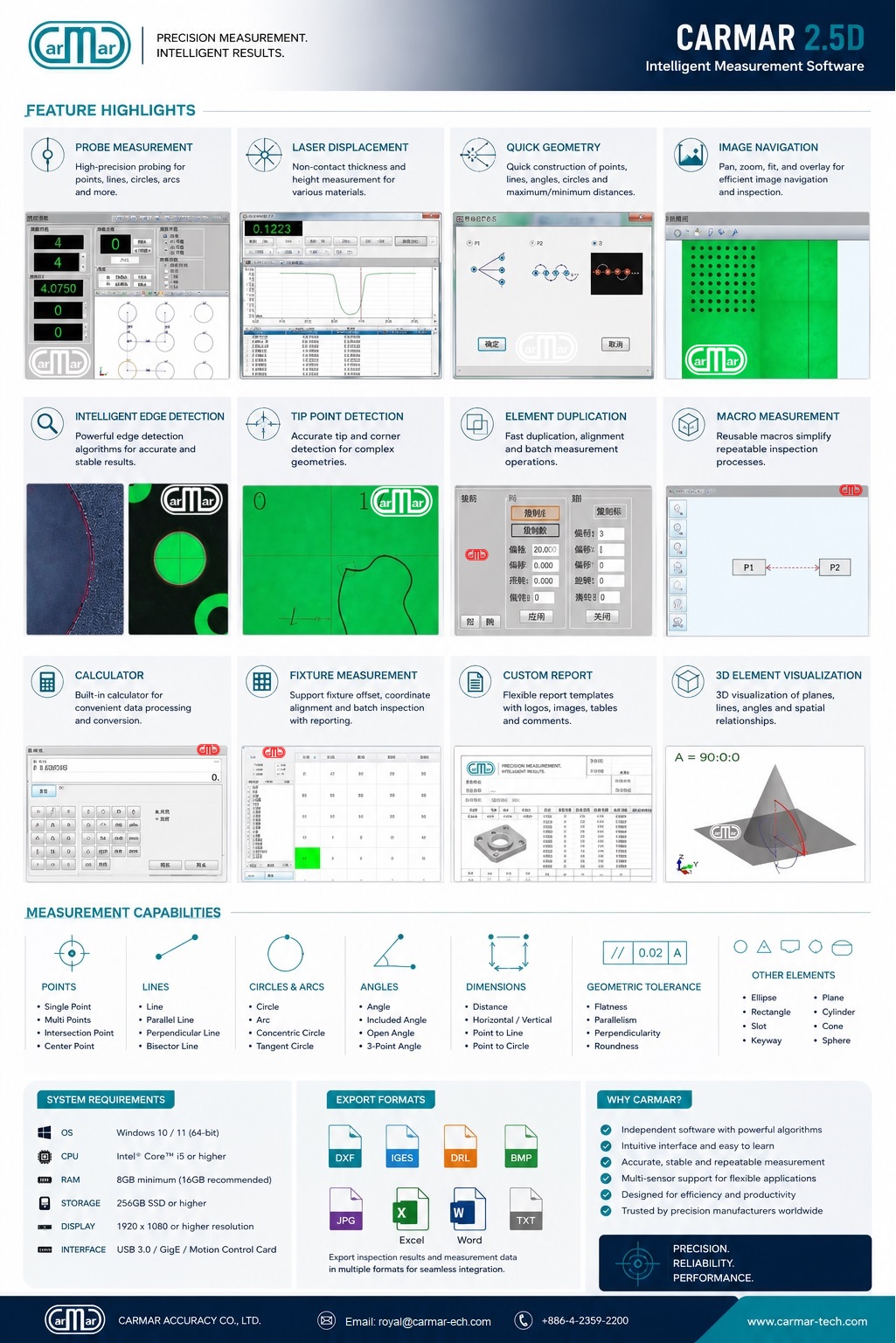

| Measuring Software | QMS3D-M, TAIWAN MADE. | |||||
| Video System | VMM-D series | |||||
| CCD Camera：Colour 1/3“ CCD Camera Zoom Lens Magnification of field lens 0.7X - 4.5X Total Magnifications 33X - 195X Object View: 8.1mm - 1.3mm (Value above is calculated by certain monitor, the value will change based on different size of monitor) |
||||||
| VMM-S OPTIONAL | ||||||
| CCD Camera：Colour 1/2“ CCD Camera Zoom Lens ： Magnification of field lens 0.7X - 4.5X Total Magnifications 23.5X - 148X Object View 11.1mm - 1.7m |
||||||
| Lightening System | Adjustable LED Surface and Transmission illumination | |||||
| Power Supply | AC220V/110V 50/60 Hz | |||||
